General Details

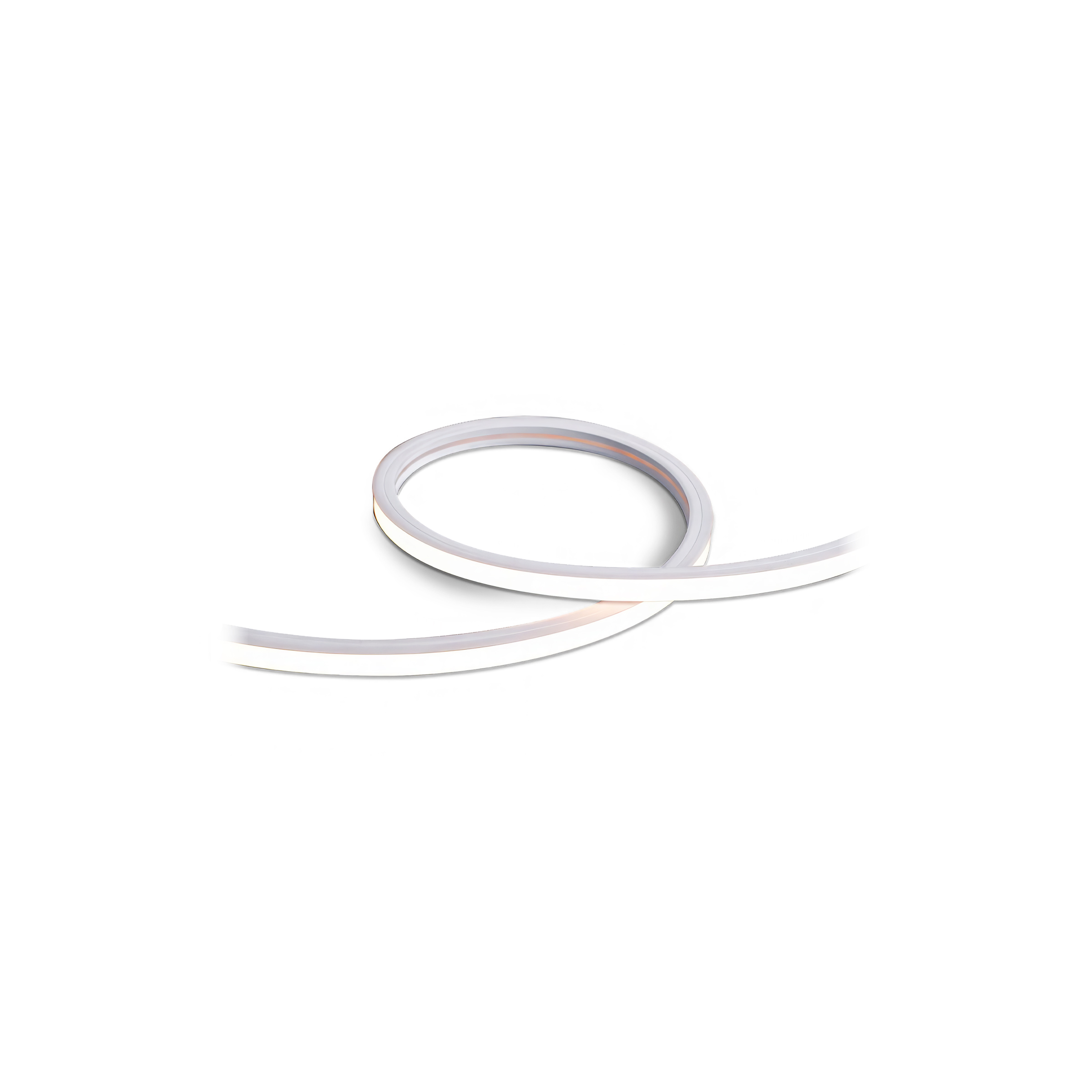

UNILinear Flex
UNILinear Flex is really and excellently waterproof and anti-dust LED strips with professional design to guarantee lighting performance. Thanks to filling with anti-UV polyurethane and processing by irrigation methods sealing glue, it not only ensure high quality of lighting color consistency but also protect products outdoor against from harsh environments outdoors.It’s can be used for decoration lighting and guidance lighting outdoors, the higher CRI (80) delivers good performance of lighting in color rendering.
Benefits
- Water-proof and vivid light color
- Less maintenance cost and less concerns on water invasion
Features
- Sealed with anti-UV polyurethane without color shifting and anti-UV aging
- Various lumen output from 400lm to 1200lm per meter
- Optional CCT 2500K/3000K/4000K/5000K/RGB for different application
- CRI80 for better vivid color rendering
- SDCM≤ 5, better color consistency for visual comfort
- DC 24VDC, Class III for safety use
- Long lifespan 30K hrs. L70B50@35°C
- Lead cable (1000mm) for connection
- CB
Application
- Decorative Lighting
- Guidance Lighting
- Cove Lighting
Techical Info
| GENERAL INFORMATION | |
| Driver Included | No |
| LIGHT TECHNICAL | |
| Optical Cover Type | Opal |
| Color Rendering Index (CRI) | >90 |
| CONTROLS AND DIMMING | |
| Dimmable | No |
| MECHANICAL AND HOUSING | |
| Housing Color | White |
| APPROVAL AND APPLICATION | |
| CE Mark | No |
| Mech. Impact Protection Code | IK04 |
| Ingress Protection Code | IP66 |
Product Enquiry
Contact form description text
Documents
