General Details

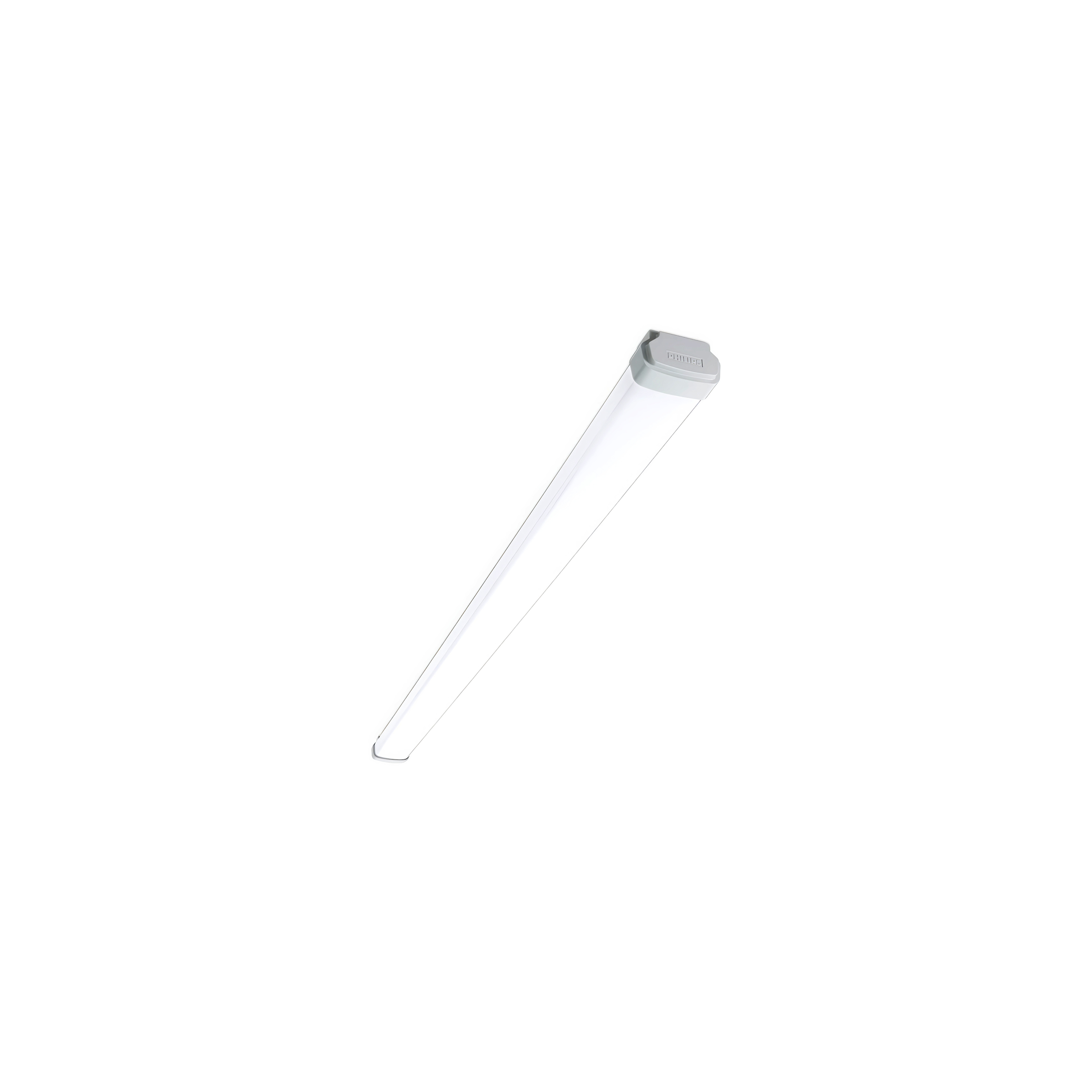

Smartbright Waterproof G3
Philips Smartbright Waterproof G3 batten offers exceptional value. It is Perfect for everyday lighting installations. Available in 3 standard sizes, it has option of Standard and through wiring version.
Benefits
- Lifetime: 30,000 hrs @ L70B50, 3 Years warranty
- IP66, IK06
- Quick connector for easy installation
Features
- 2 colour temperatures,3 sizes and Standard and through wiring version
- IP66/IK06 – Water and dust-proof. For all weather
- Reliable with a long service life of 30,000 hours L70
- 3 years warranty
- Quick connector for easy installation
Applications
- Parking Garage
- Office
Techical Info
| GENERAL INFORMATION | |
| CE Mark | CE Mark |
| LIGHT TECHNICAL | |
| Optic Cover Type | – |
| Color Rendering Index (CRI) | >80 |
| Luminous Efficacy (Rated) (Nom) | 110 lm/W |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| TEMPERATURE | |
| Ambient Temperature Range | -20 to +45 °C |
| CONTROLS AND DIMMING | |
| Dimmable | No |
| MECHANICAL AND HOUSING | |
| Housing Color | White and Gray |
| APPROVAL AND APPLICATION | |
| CE Mark | – |
| Protection Class IEC | Safety Class II |
| Mech. Impact Protection Code | IK06 |
| Ingress Protection Code | IP66 |
| INITIAL PERFORMANCE (IEC COMPLIANT) | |
| Luminous Flux Tolerance | +/-10% |
