General Details
SmartBright G3

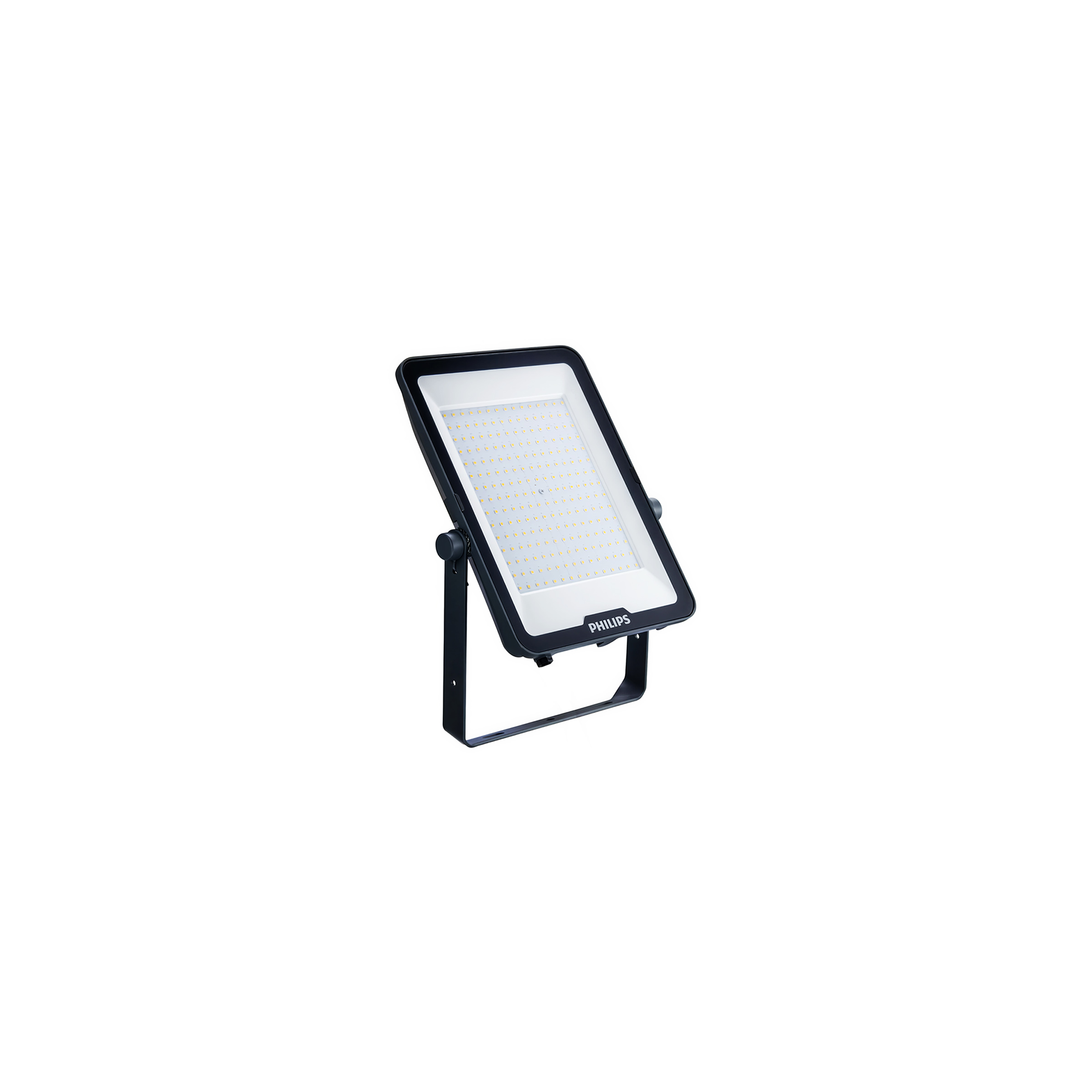

The SmartBright G3 LED Floodlight is the new successor with robust die-cast aluminum housing suitable for general outdoor application. It delivers high efficacy and outstanding energy savings.
Benefits
- High system efficacy
- Reliable quality and performance
- Robust design
- Long lifetime
Features
- CCT: 6500K
- Power: 10W, 20W, 30W, 50W, 70W, 100W, 150W and 200W
- Input voltage: 220V-240V
- Lumen efficacy up to 120lm/w
- Working temperature: -25°C to +40°C
- 50 khrs life
Applications
- Warehouse
- Landscape
- Arena and Sport
- Architectural Light
- Billboard
- Parking Area Lighting
- Amenity
Techical Info
| GEMERAL INFORMATION | |
| Driver Included | Yes |
| Gear | – |
| Number of Gear Units | 1 |
| LIGHT TECHNICAL | |
| Luminaire Light Beam Spread | 110° |
| Light Source Color | 865 Cool Daylight |
| Correlated Color Temperature (Nom) | 6500 K |
| Optical Cover Type | Glass |
| Color Rendering Index (CRI) | 80 |
| Number of Light Sources | 1 |
| CONTROLS AND DIMMING | |
| Dimmable | No |
| MECHANICAL AND HOUSING | |
| Housing Color | Gray |
| APPROVAL AND APPLICATION | |
| CE Mark | – |
| Flammability Mark | For mounting on normally flammable surfaces |
| Glow-Wire Test | Temperature 650 °C, duration 30 s |
| Ingress Protection Code | IP65 |
| APPLICATION CONDITIONS | |
| Maximum Dim Level | Not applicable |
