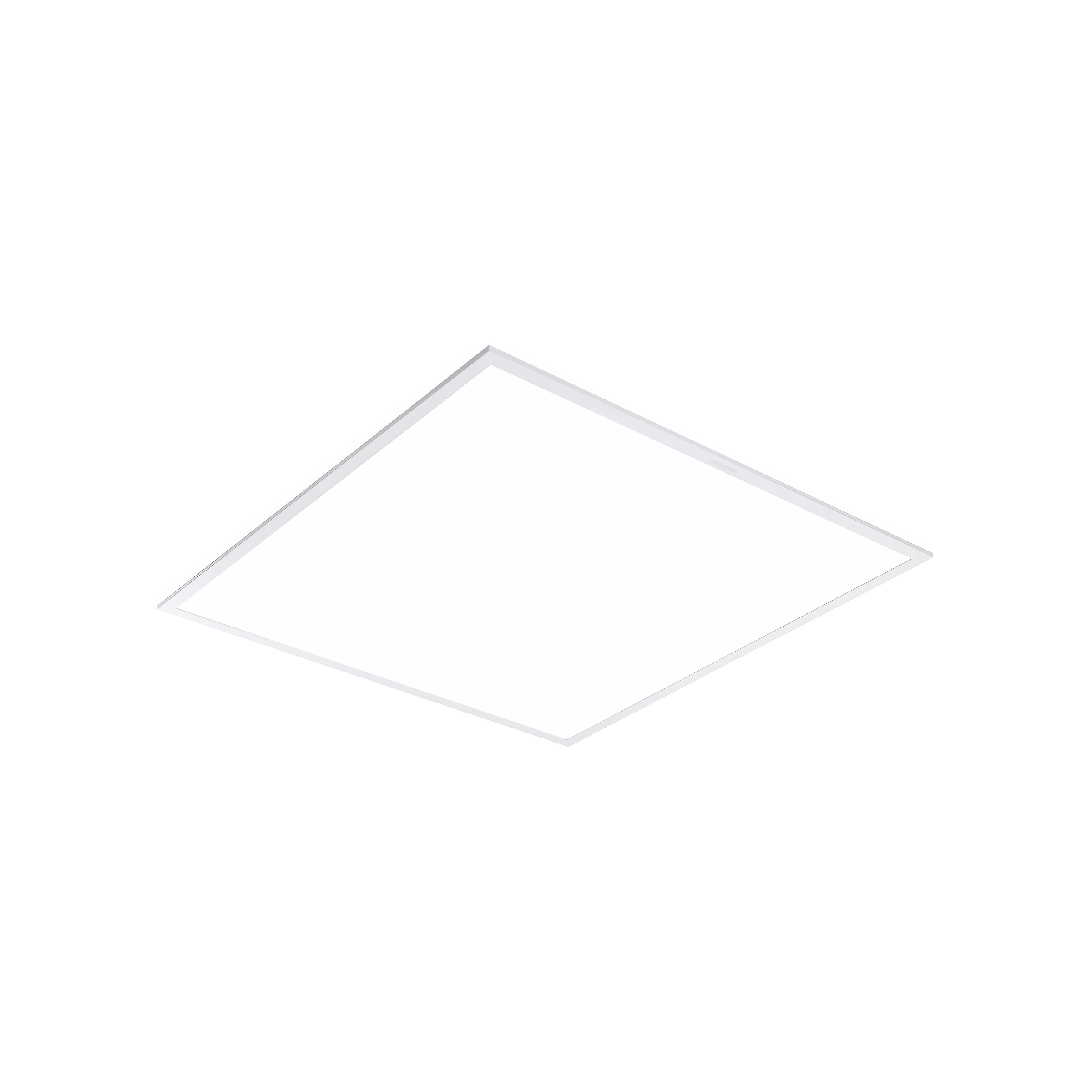

SmartBright Direct Panel G2
The new Philips Smartbright Direct panel offers exceptional value. It is perfect for your everyday ceiling lighting installations. It is available in 2 standard sizes and 2 different CCT options to suit your need.
Benefits
- 30K hrs, 3 year warranty
- Flicker Free – Ripple ≤ 5%
- CRI 80
Features
- Suitable for different mounting applications: Recessed, PCV, Suspension
- SDCM ≤5
- Surge protection: 1KV/0.5KV
Applications
- Office
- Hospitality
- Fashion
Techical Info
| LIGHT TECHNICAL | |
| Correlated Color Temperature (Nom) | 4000 K |
| Optical Cover Type | Acrylate |
| Color Rendering Index (CRI) | >80 |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| TEMPERATURE | |
| Ambient Temperature Range | -10 to +35° |
| CONTROLS AND DIMMING | |
| Dimmable | No |
| MECHANICAL AND HOUSING | |
| Housing Color | White RAL 9003 |
| APPROVAL AND APPLICATION | |
| CE Mark | CE Mark |
| Protection Class IEC | Safety Class II |
| Flammability Mark | For mounting on normally flammable surfaces |
| Mech. Impact Protection Code | IK02 |
| Ingress Protection Code | IP20 |
| INITIAL PERFORMANCE (IEC COMPLIANT) | |
| Initial Chromaticity | (0.38, 0.38) SDCM≤5 |
| Luminous Flux Tolerance | +/-10% |
