General Details

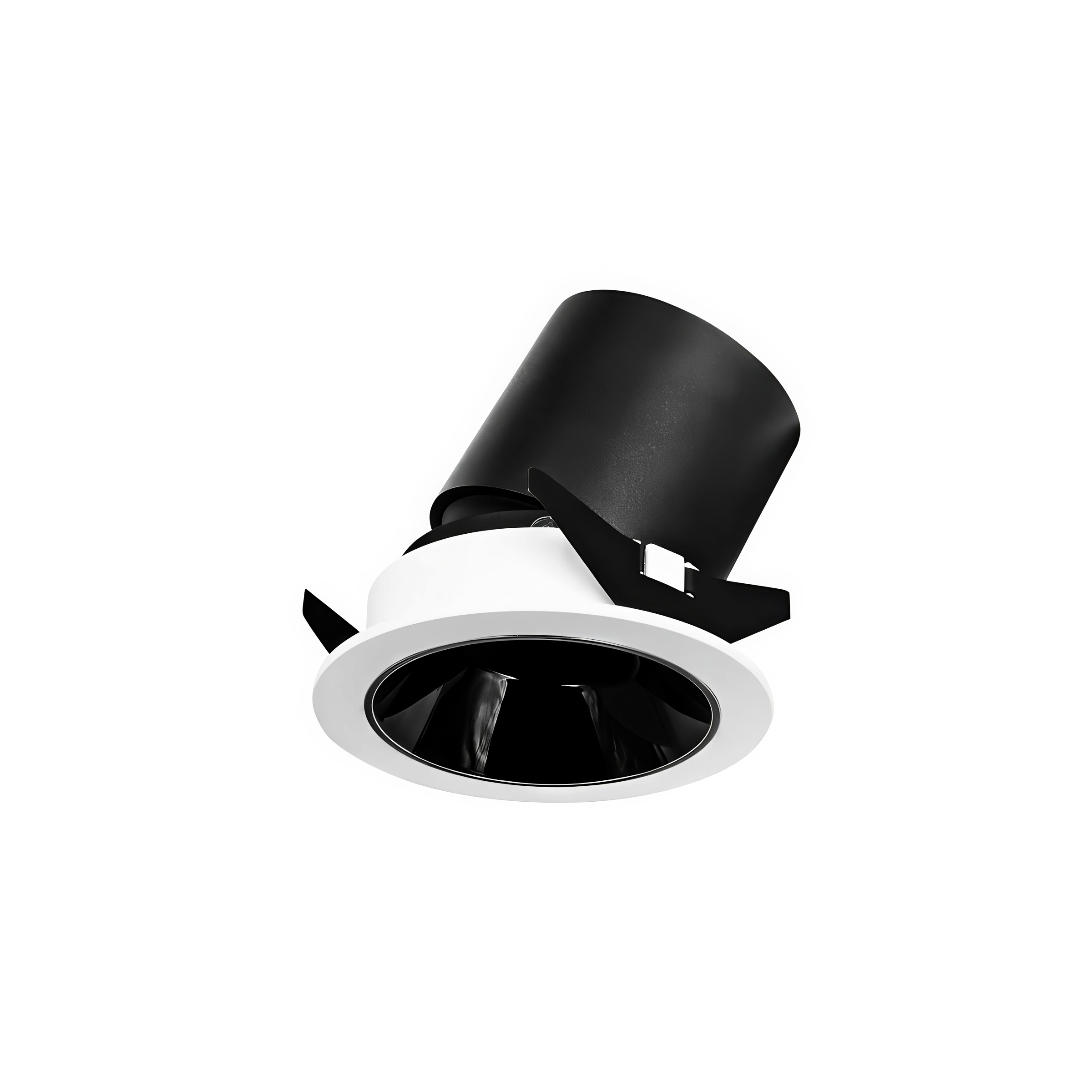

SmartBright Dimmable Spot
The SmartBright Dimmable Spot comes offering reliable lighting performance with smooth dimming control, suitable for diversified applications. Deep recessed design, 0-10V dimming driver and high color rendering can attract you more with its elegant design.
Benefits
- Deep recessed & Anti-dazzle
- Smooth dimming control (0-10V)
- High color rendering
- Narrow-edge ring design
Features
- Power: 7W, 9W, 12W and 15W
- 4 CCT: 2700K, 3000K, 3500K (only for 9W) and 4000K
- Input voltage is 220-240V
- CRI90
- 0-10V dimming
- Power factor: >0.9
- Working temperature: -20°C to +40°C
Applications
- Residential
- Hospitality
- Retail
- Architectural light
- High-end restaurant
- High-end club
- Hotel
Techical Info
| LIGHT TECHNICAL | |
| Optical Cover Type | Lens |
| Color Rendering Index (CRI) | >90 |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| TEMPERATURE | |
| Ambient Temperature Range | -20 to +40° |
| CONTROLS AND DIMMING | |
| Dimmable | Yes |
| APPROVAL AND APPLICATION | |
| Protection Class IEC | Safety Class II |
| Flammability Mark | For mounting on normally flammable surfaces |
| INITIAL PERFORMANCE (IEC COMPLIANT) | |
| Luminous Flux Tolerance | +/-10% |
