General Details

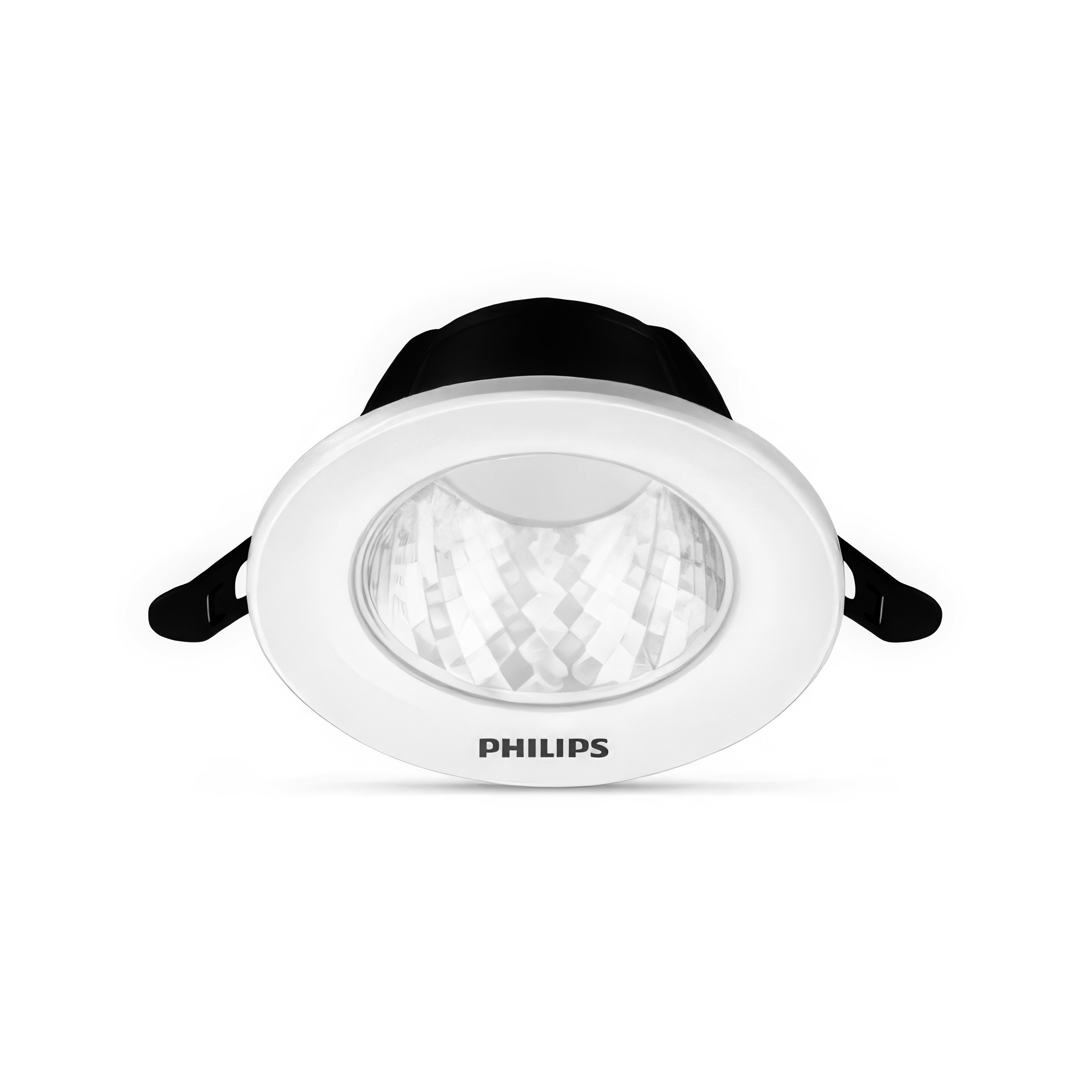

SmartBright Deep Recessed
The new Philips deep recessed downlight offers excellent light quality, high efficacy and full range in terms of lumen output. Available in four sizes to suit a wide variety of standard applications. This is a real professional choice for everyday lighting installations.
Benefits
- Product diversity
- Excellent light quality
- IP54 for the front cover
- Reliable performance – 30K hours L70
Features
- Wide range of lumens – 120 ~ 3200lm
- 4 cut out sizes – D125/D150/D175
- Excellent optics – UGR 19
- Great color rendering – CRI 90
- IP54 – Suitable for bathroom, under eaves
- PF 0.9
Applications
- All indoor ceiling installations
- Commercial and retail building environments
- Shopping centers, restaurant, bathroom, etc.
Techical Info
| GENERAL INFORMATION | |
| System Lumen Output | 1200lm / 2000lm / 3200lm |
| IP Rating | IP54 (Front Cover) / IK03 |
| Housing Material | Thermal plastic + Aluminum over molding |
| LIGHT TECHNICAL | |
| Color Rendering Index (CRI) | ≥90 |
| UGR | 19 |
| Beam Angle | 5~60° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Power Factor | 0.9 |
| THD | <15% |
| CCT | 3000K / 4000K / 6500K |
| System Efficacy | 100lm/W |
| Driver | External – Fixed Output |
| TEMPERATURE | |
| Ambient Temperature Range | -20 to +40 °C |
