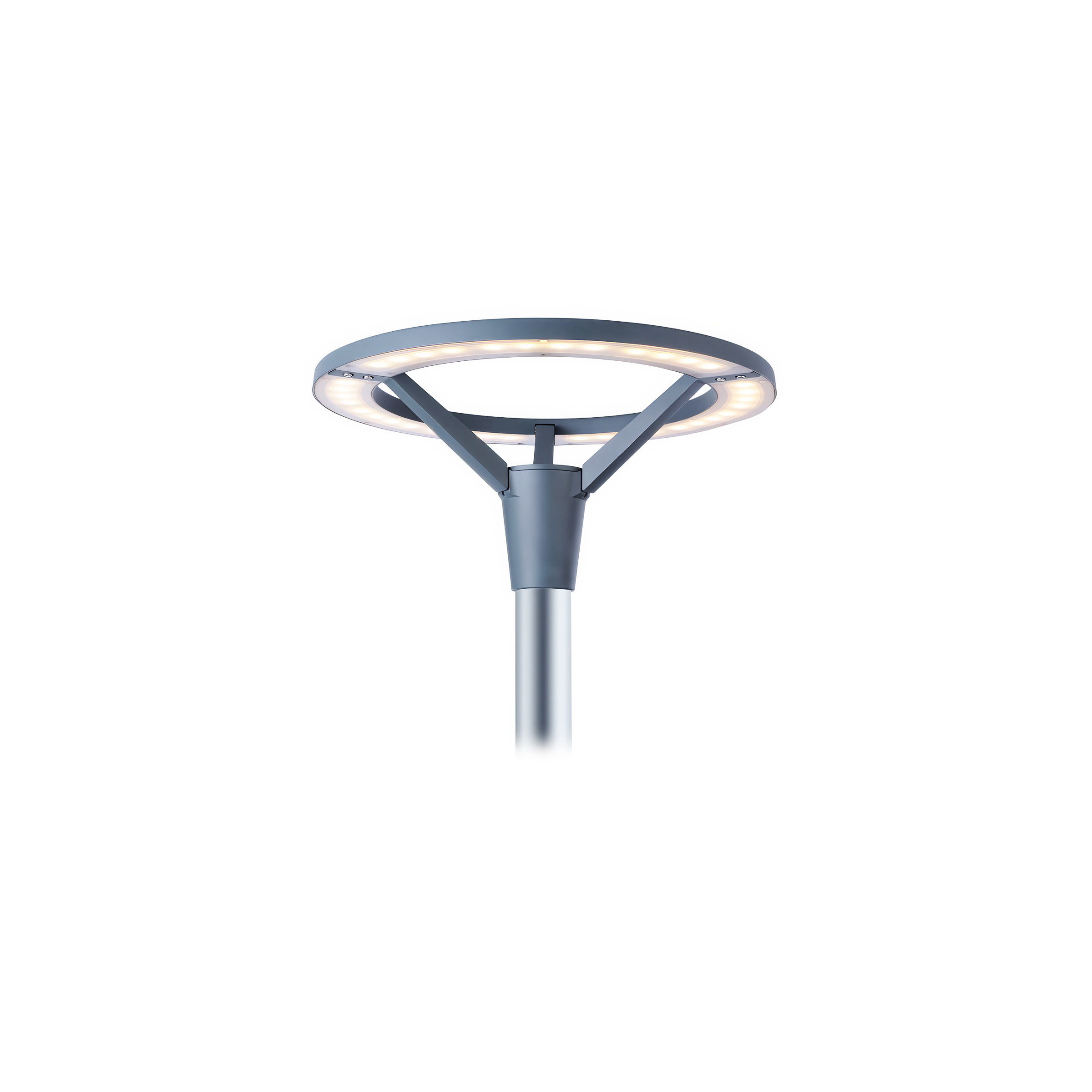

Smart Post-Top G3
Smart Post Top G3 inherits the classic look and style of the previous generation, while offering improved system efficacy and light quality. The optimized optical design enhances both horizontal and vertical uniformity, ensuring a more consistent and even light distribution. Additionally, the highly efficient thermal system design maximizes heat transfer, contributing to a longer LED service life.
This reliable luminaire system is capable of performing well in both low and high temperature environments, offering an expected life span of over 11 years. This longevity reduces maintenance frequency and associated costs, assuming a 50,000-hour rated life and 12 hours of operation per day. The Smart Post Top G3 provides a comfortable and safe atmosphere in various settings, including gardens, residential areas, courtyards, side streets, squares, parks, and playgrounds.
Benefits
- Outstanding lighting performance
- Reliable quality
- Environment friendly
Features
- SDCM≤4 high uniformity, up to 92 lm/w, high system efficacy, up to 2500lm high brightness, CRI>70 shows true colour
- 50K hours lifetime @L70B50 IP65,IK07, water and shock resistant Corrosion resistant painting, aluminum housing, anti UV polycarbonate optics
- Compliant with the material restriction requirements of RoHS significant energy saving compared to conventional lighting
Applications
- Residential Area, Path Way, Park, etc.
GENERAL INFORMATION | |
CE Mark | – |
Driver Included | Yes |
Lamp Family Code | – |
Light Source Replaceable | Yes |
Number of Gear Units | 1 |
LIGHT TECHNICAL | |
Luminaire Light Beam Spread | – |
Optical Cover Type | Acrylate cover and semi-matte high-reflective optic |
Color Rendering Index (CRI) | 70 |
Optic Type Outdoor | Symmetrical |
Standard Tilt Angle Side Entry | – |
Standard Tilt Angle Post-Top | – |
Upward Light Output Ratio | 0 |
CONTROLS AND DIMMING | |
Dimmable | No |
APPROVAL AND APPLICATION | |
Mech. Impact Protection Code | IK07 |
Ingress Protection Code | IP65 |
Surge Protection (Common/Differential) | 4/2 kV |
APPLICATION CONDITIONS | |
Maximum Dim Level | Not applicable |
