General Details

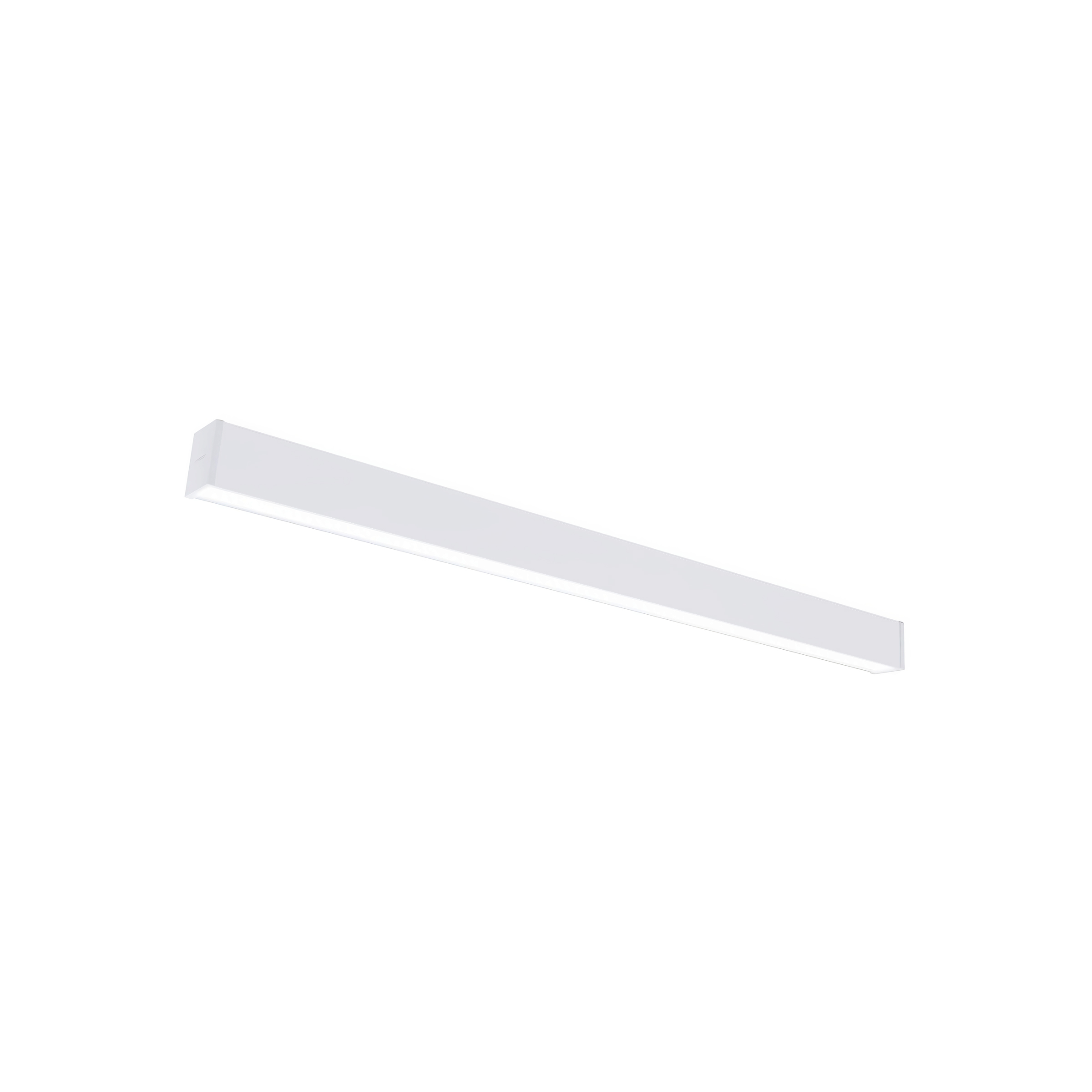

SlimBalance G3
SlimBalance G3 SP570P is a flexible linear office offer which fits a variety of spaces like office, education. It offers flexible width of 35/60/90/120mm and length of 600/1200/1500mm to fit multiple applications. Geometric shapes help further create differentiated space. By means of its special designed structure, it offers quick and easy installation and maintenance. UGR19 is available for certain types through customized solution to provide a better visual comfort office environment.
Benefits
- High lm/w provides better energy saving
- Flexible width offers the feasibility to fit multiple ceiling spaces
- DALI and Interact interfaces available for easy system control
- Low UGR offer for visual comfort
- Multiple mounting installations and geometric shapes to cater for various applications
- Easy installation mechanism and modular design help save installation and maintenance time
Features
- System efficiency: Max 130lm/W
- Product width with 35/60/90/120mm options
- CRI 80 and 90 available
- Lifetime: 50k hours (L70@25°C)
- UGR19 available for certain types through customized solution
- Easy ‘Slide and Click’ mechanism for quick continuous installation
Applications
- Open Plan Office
- Public Indoor Area
- Meeting/Training Room
- Library
Techical Info
| LIGHT TECHNICAL | |
| Beam Angle of Light Source | 116°C |
| Optical Cover Type | Polycarbonate Bowl / Cover Frosted |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| TEMPERATURE | |
| Ambient Temperature Range | -20 to +40°C |
| MECHANICAL AND HOUSING | |
| Housing Color | White RAL 9003 |
| APPROVAL AND APPLICATION | |
| CE Mark | CE Mark |
| Protection Class IEC | Safety Class I |
| Flammability Mark | For mounting on normally flammable surfaces |
| Glow-Wire Test | Temperature 650 °C, Duration 30 s |
| Mech. Impact Protection Code | IK03 |
| Ingress Protection Code | IP20 |
| INITIAL PERFORMANCE (IEC COMPLIANT) | |
| Initial Chromaticity | SDCM<=4 |
| Luminous Flux Tolerance | +/-10% |
