General Details

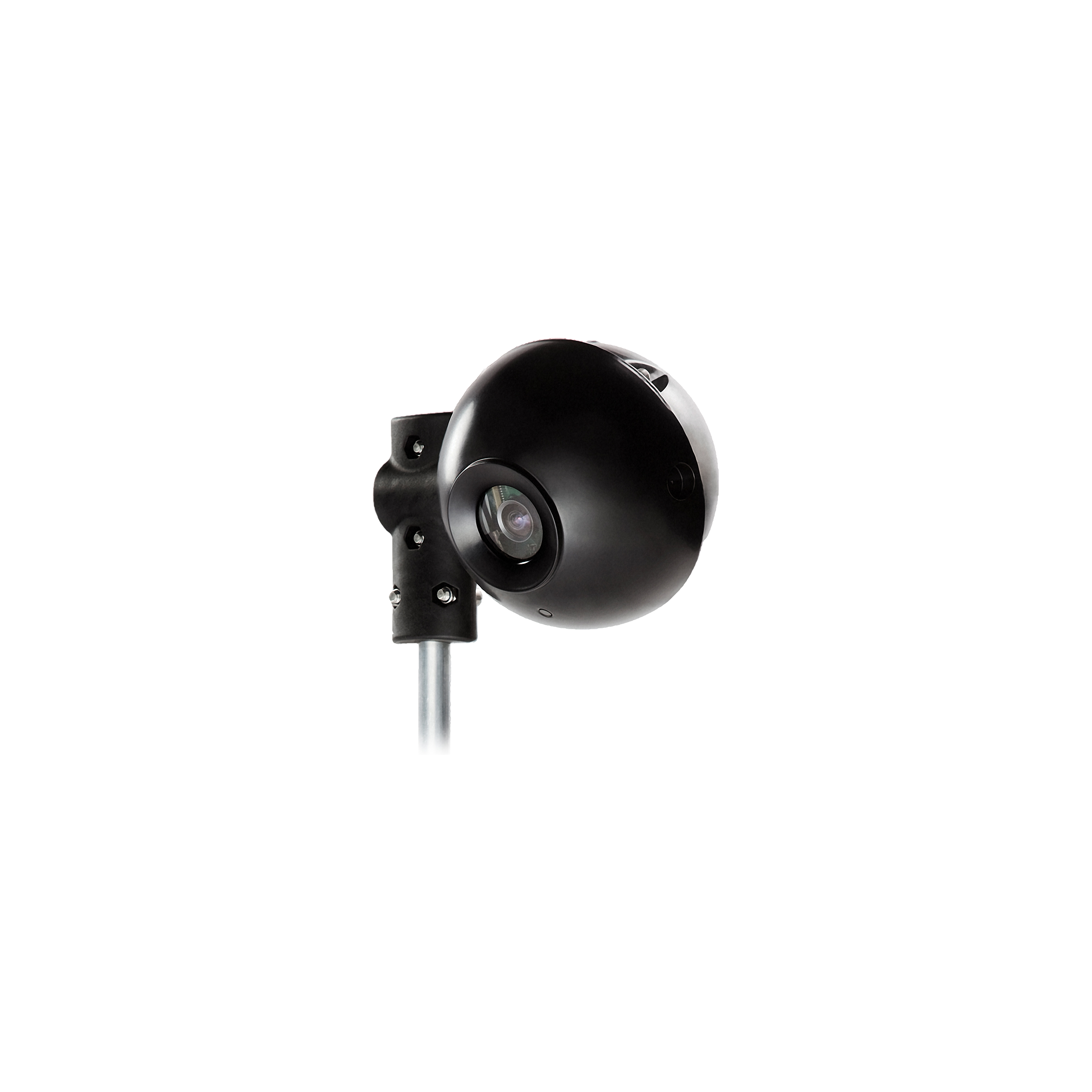

Sivicam


Sivicam is an integrated system consisting of a CMOS camera and an image-processing unit – a combination that enables high-precision vehicle detection. The system can be installed without compromising pavement integrity at the intersection since it operates with “virtual” loops instead of physical ones. Mounted simply onto existing infrastructure components, Sivicam reliably detects all vehicles approaching the intersection or waiting there.

High-Precision Video Detection At Its Best

  • Sivicam operates on the basis of an optical grid of detection zones overlaying the video image
  • Each Sivicam monitors up to 4 such zones, which can be assigned a specific traffic direction
  • Only those vehicles are recorded that move in the direction defined for the zone in question
  • The system reliably detects vehicles on up to 8 lanes
  • Often a single Sivicam is sufficient to monitor the entire approach area to an intersection
  • The wide-angle version has been designed to detect vehicles in the stop bar zone

Features

  • Quick installation and easy configuration and operation
  • Reliable detection around the clock and in any weather
  • Economical solution compared to many other detector systems
  • Tele-camera for the detection of vehicles at distances of 50 m and more
Technical Info
NARROW LENS WIDE LENS
OVERVIEW
CMOS Type 1/4″ Black & White 1/4″ Black & White
Compression JPEG JPEG
Detection Functionalities Vehicle Presence Vehicle Presence
Vertically Mounted Dimension 45 cm × 16 cm × 12 cm 45 cm × 16 cm × 12 cm
Horizontally Mounted Dimension 41 cm × 18 cm × 12 cm 41 cm × 18 cm × 12 cm
Focal Length 6.0 mm 2.1 mm
Material Aluminium Aluminium
Mounting Height 3.5 – 12.0 m 3.5 – 12.0 m
Sunshield Optional Optional
Detection Zones 8 8
COMMUNICATIONS
Communications PC / Sensor Via Interface Via Interface
Interface 1TI, 4TI ETH , 4TI ETH EDGE* 1TI, 4TI ETH , 4TI ETH EDGE*
Outputs 4 for 1TI
8 for 4TI ETH
4 for 4TI ETH EDGE**
4 for 1TI
8 for 4TI ETH
4 for 4TI ETH EDGE**
ELECTRICAL & MECHANICAL
IP Address No No
PC Tool for Set-Up TrafiCam PC Tool TrafiCam PC Tool
ENVIRONMENTAL & APPROVALS
EMC 2014/30/EU 2014/30/EU
FCC Part 15 Class A Part 15 Class A
Protection Grade IP67 IP67
Temperature Range -34° to 80°C -34° to 80°C
Materials Weatherproof Weatherproof
IMAGING & OPTICAL
Frame Rate 20 FPS 20 FPS
Lens Type Narrow Wide
Resolution 640 x 480 pixels (VGA) 640 x 480 pixels (VGA)
Focal Distance 6.0 mm 2.1 mm
PERFORMANCE
Detection Range 15.0 – 75.0 m 0.0 – 25.0 m
POWER
Detection Range 12 – 26VAC/DC 12 – 26VAC/DC
*    US Only
**  4 extra outputs via 4/Os xp expansion board
