General Details

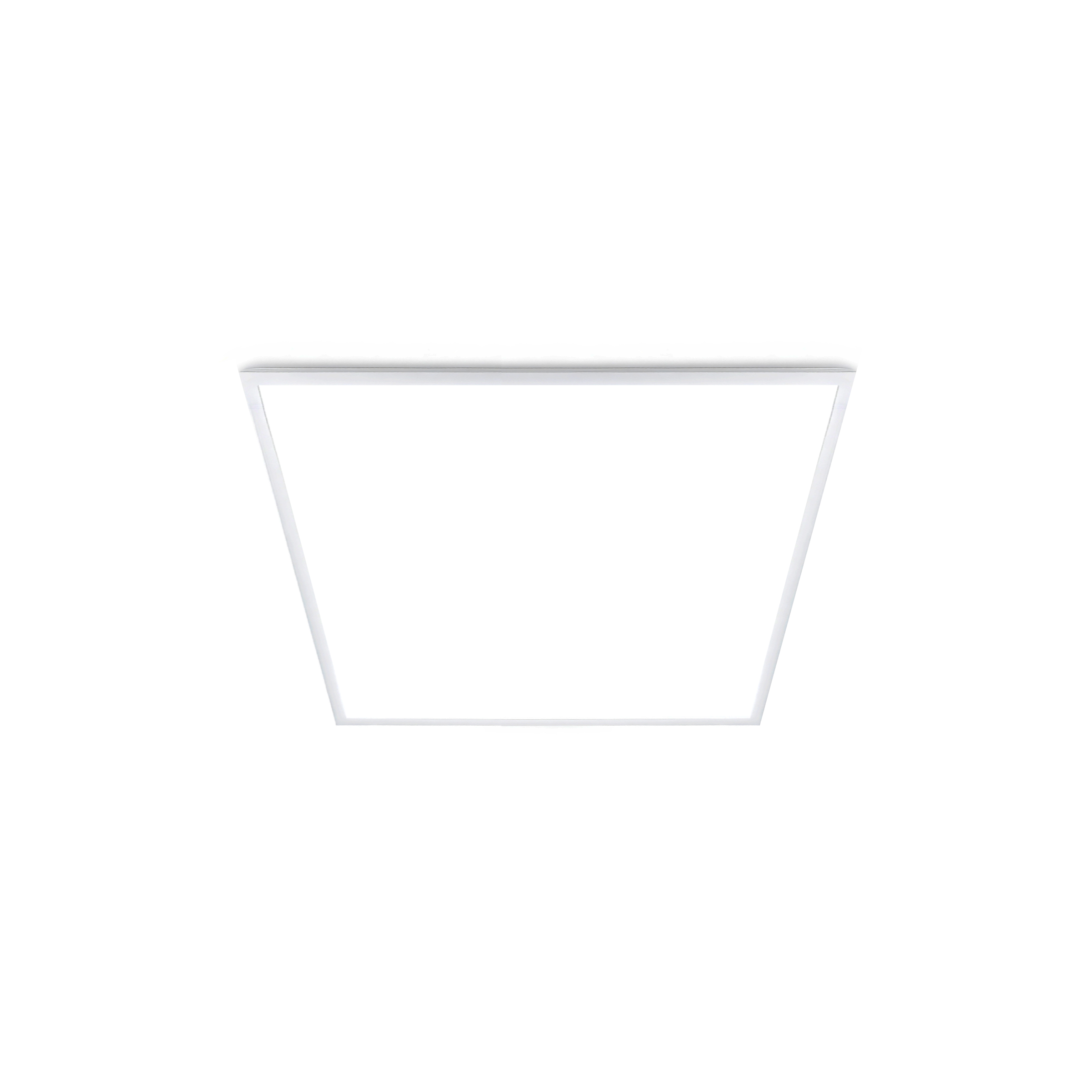

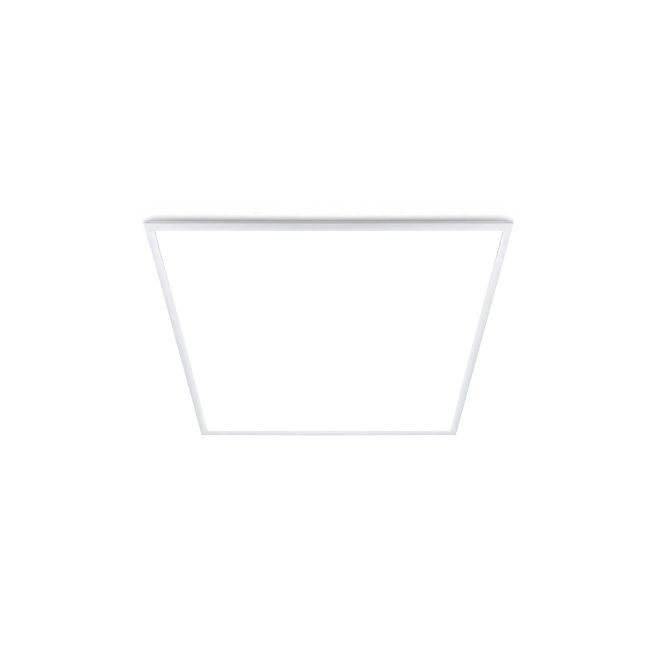

SIMPLITZ Panel Optimum
SIMPLITZ Panel Optimum is an economic and energy-saving replacement for traditional office panel / louvers. With three sizes and three different ways of mounting, it perfectly fits a variety of applications to provide quality general lighting that enhances sense of well-being.
Benefits
- Simple shape with stable quality
-
- Strong frame with extrusion aluminium
- Easy installation
-
- Stable performance with safety and reliability
-
- Up to 125 lm/W
- PF≥0.95
- UGR≤19
- 50,000hrs lumen maintenance – L70@25°C
-
- Full range to fulfill all applications
-
- Sizes are 2ft×2ft, 4ft×1ft, 4ft×2ft
- Power 32W, 42W
- CCT 4000K, 5700K, 6500K
- Control ON&OFF, 0-10V DIM, DALI
- Recessed, suspended, integrated ceiling mounting
-
Applications
- Office
- School
- Bank
- Store
- Public Building
Techical Info
| GENERAL INFORMATION | |
| Power | AC Line |
| Control | ON/OFF, 0-10V DIM, DALI |
| Installation | Recessed, Suspended and Integrated ceiling mounting (Accessories purchase separately) |
| IP Rating | IP20 (Indoor) |
| Lumen Maintenance | L70@25°C – 50,000hrs |
| Safety Approval | Electrical Protection Class II, CCC, RoHS |
| LIGHT TECHNICAL | |
| CCT | 4000K, 5700K, 6500K |
| Color Rendering Index (CRI) | ≥80 |
| SDCM | ≤5 |
| UGR | ≤19 |
| Beam Angle | 90° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Power Factor | ≥0.95 |
| Surge Protection | L-N 1KV, L/N-Ground 2KV |
| Cover Lens | PMMA |
| Housing | Aluminium Frame |
| TEMPERATURE | |
| Ambient Temperature Range | -20 to +40 °C |
