General Details

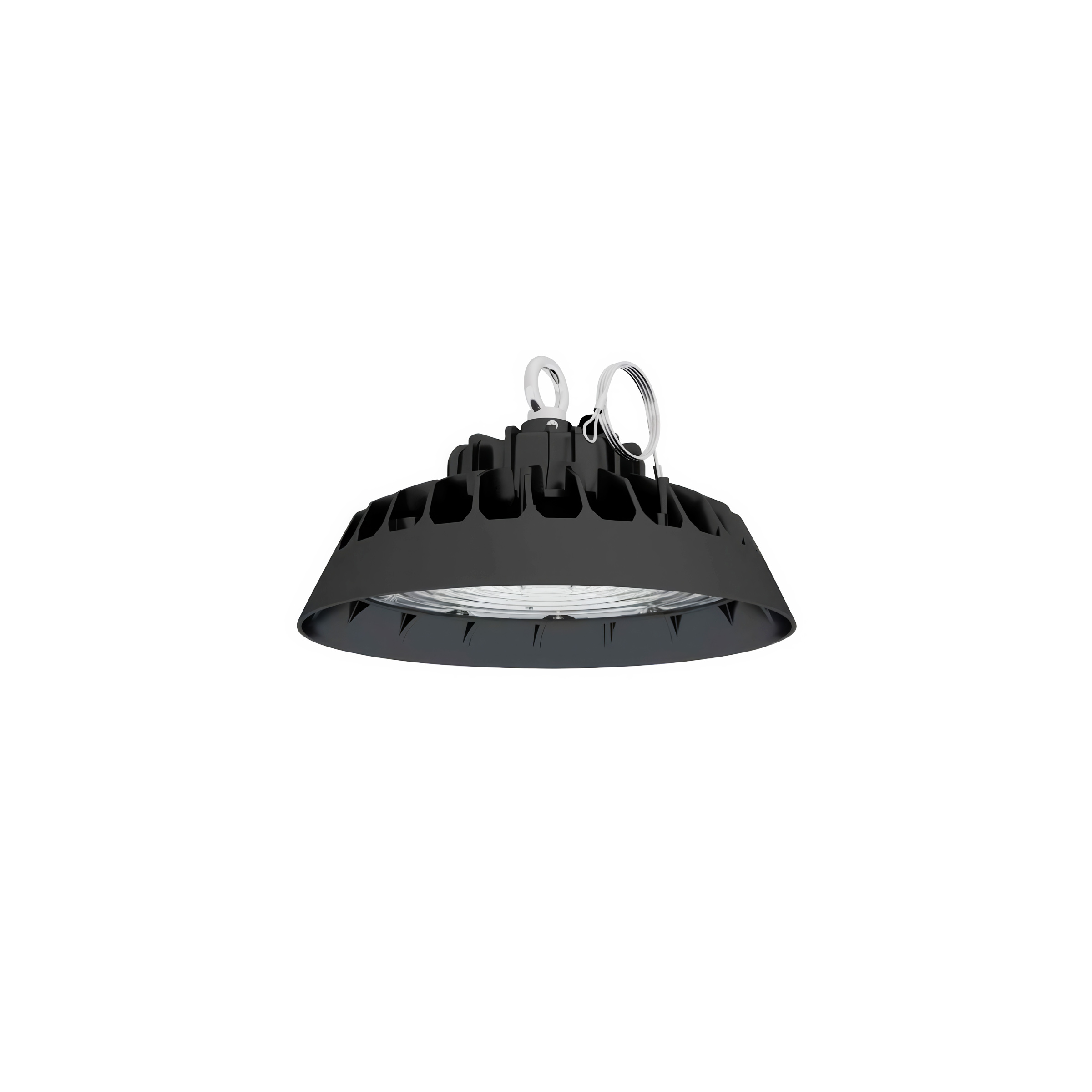

SIMPLITZ Highbay Cold Storage
SIMPLITZ Highbay Cold Storage series is highly efficient and reliable LED highbay luminaries that can be used in dusty, humid and low temperature environment. The well-designed die-casting aluminium heat sink with high-efficiency lens achieve a perfect balance between convenience and practicality. SIMPLITZ Highbay Cold Storage series can replace the traditional HID highbay directly and provide the best solution for high ceiling industrial lighting and commercial lighting.
Benefits
- One-to-one replacement of traditional HID highbay
-
- 50% energy saving
- Working temperature is -30°C ~ 45°C
- Maintain desired illumination throughout lifecycle
- Easy transportation and installation. Low maintenance cost
-
- Safe and reliable
-
- Compact and light weight — IP65, IK08
- 30,000hrs lifetime
-
- Visual comfort
-
- CRI > 80
-
Applications
- Cold Storage
- Workshop, Assembly Line
- Warehouse, Logistic
- Public Areas (Airport, Station, Stadium)
Techical Info
| GENERAL INFORMATION | |
| Power | AC Line |
| Dimming | ON/OFF (1-10V can be customized) |
| Installation | Suspend / Surface Mounting |
| IP Rating | IP65, IK08 (Indoor) |
| Lumen Maintenance | L70B50@25°C – 30,000hrs |
| Safety Approval | Electrical Protection Class I, CB, CCC |
| LIGHT TECHNICAL | |
| CCT | 4000K, 5000K |
| Color Rendering Index (CRI) | ≥80 |
| SDCM | ≤5 |
| Beam Angle | 90°(45×90°can be customized) |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Power Consumption | 60W |
| Total Harmonic Distortion | <10%@230Vac/50Hz |
| Power Factor | ≥0.95@230Vac/50Hz |
| Surge Protection | Line to Line: 4KV, Line to Ground: 4KV |
| Cover Lens | PC |
| Housing | Die-casting Aluminium housing |
| TEMPERATURE | |
| Ambient Temperature Range | -30 °C to +45 °C |
