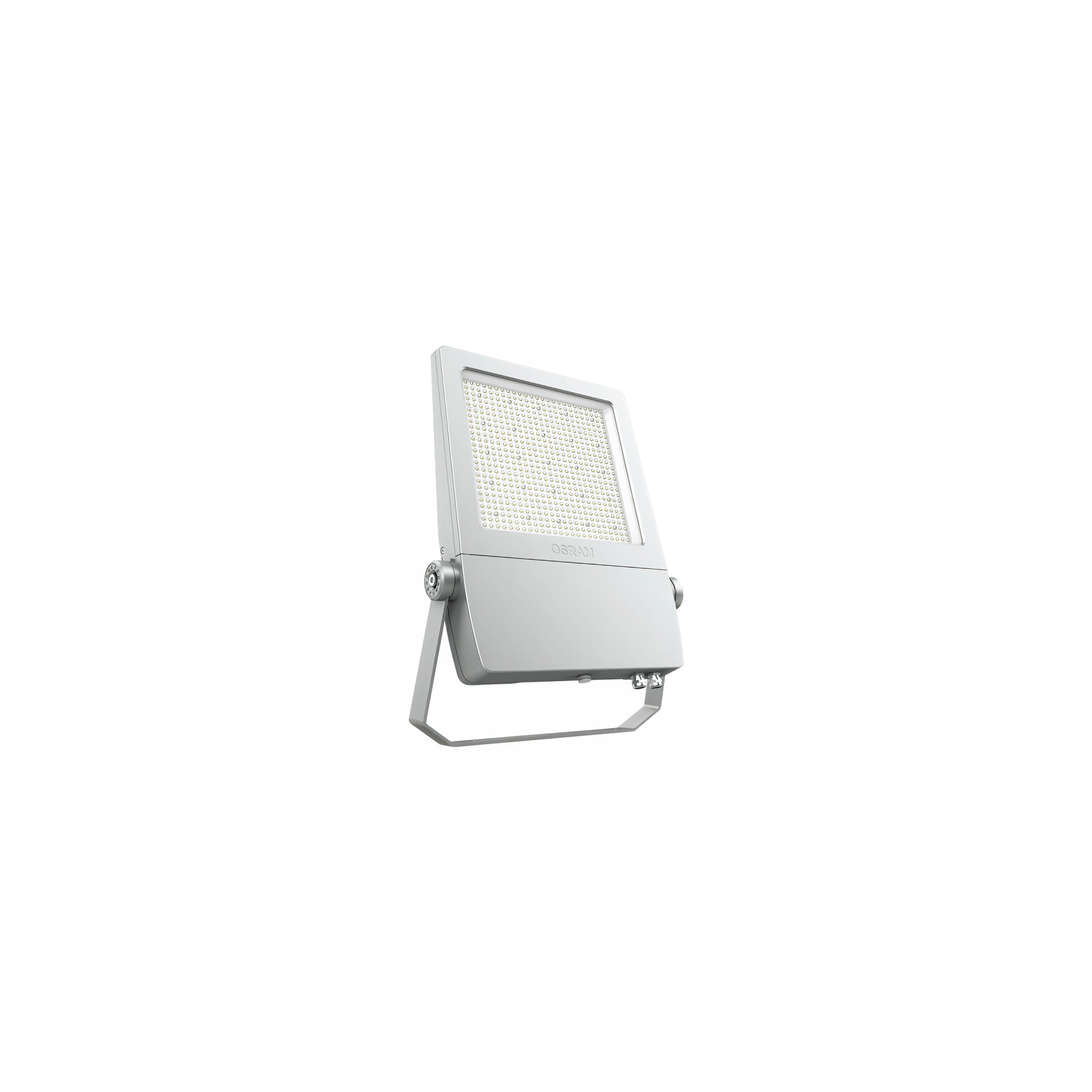

SIMPLITZ Floodlight V3 Premium
The SIMPLITZ Floodlight V3 Premium Edition features a classic appearance design, featuring robust and enduring aluminum die-cast housing and high-strength tempered glass. Its back cover can be opened for simple and easy maintenance work. With a wide power option from 50W to 350W, it can accommodate various lighting requirements in different scenarios. The optical design is flexible, offering symmetric and asymmetric light distributions ranging from narrow beam angle to ultra-wide beam angle, making it suitable for indoor and outdoor applications, including area flood lighting and façade illumination.
Equipped with a high protection rating of IP66 / IK08, it effectively prevents dust and water ingress, while demonstrating excellent resistance to impact, adapting to various complex environments. Its high-efficiency design ensures a long-lasting and stable light output, maintaining superior luminous efficacy throughout its service life.
The SIMPLITZ Floodlight V3 Premium Edition is the ideal choice for both renovation and new construction projects, it not only achieves excellent lighting effects but also significantly reduces investment and maintenance costs.
Benefits
- Fulfill various lighting applications
-
- Full power ranges from 50W to 350W, suitable for specific needs
- Intelligent control interfaces, supporting 1-10V and DALI 2 dimming
- Varied Symmetry / Asymmetry optical for flexible choice
- Efficacy up to 155 lm/W, energy-saving lighting
- Designed with a back cover for easy electrical maintenance
- Nearly flicker free, a comfortable lighting experience
- Angle indicators enable precise installation
- Optional visors available for glare control
-
- Robust, Reliable, and Durable
-
- Robust and durable die-cast aluminum housing with tempered glass cover
- High protection ratings of IP66 and IK08 for reliable operation under harsh conditions
- 10KV independent surge protector for enhanced stability
- Wide operating temperature range from -30°C to +50°C, suitable for various climates
- Ultra-Lumen Maintenance L70 – 80000 hours ensuring product longevity and stable light output
-
Applications
- Facade and Building Illumination
- Area Flood Lighting
- Street Cross Area Lighting
- Billboard Lighting
- Logo Illumination
- Other Public or Industrial Areas
GENERAL INFORMATION | |
Power | AC Line |
Dimmable | 1-10V Dimming, DALI 2 Dimming |
Installation | Bracket installation, suitable for installation on the ground, wall, high mast and other solid plane |
IP Rating | IP66 / IK08, suitable for outdoor and indoor applications, Coastal Environment is on request |
Safety Approval | Electrical Protection Class I, CB, CQC, Photobiological Safety, RoHS |
LIGHT TECHNICAL | |
CCT | 3000K, 4000K, 5000K, 5700K, other on request |
Color Rendering Index (CRI) | >70, other on request |
SDCM | <5 |
Beam Angle | Symmetrical optical: NB (20°), MB(30°), UWB (60°), EWB (90°) Streetlight optical: SMB (Type II 150° x 70°) Asymmetrical optical: ASW (80° x 40°) |
OPERATING AND ELECTRICAL | |
Input Voltage | 220 to 240 V |
Power Factor | >0.95 |
Surge Protection | Independent surge protection device, Line-to-line 10KV, Line-to-ground 10KV |
Optical | PC Lens + Tempered glass |
Housing | Die-casting aluminum |
Color | RAL9006 Powder Coating |
TEMPERATURE | |
Ambient Temperature Range | -30 °C to +50 °C |
