General Details

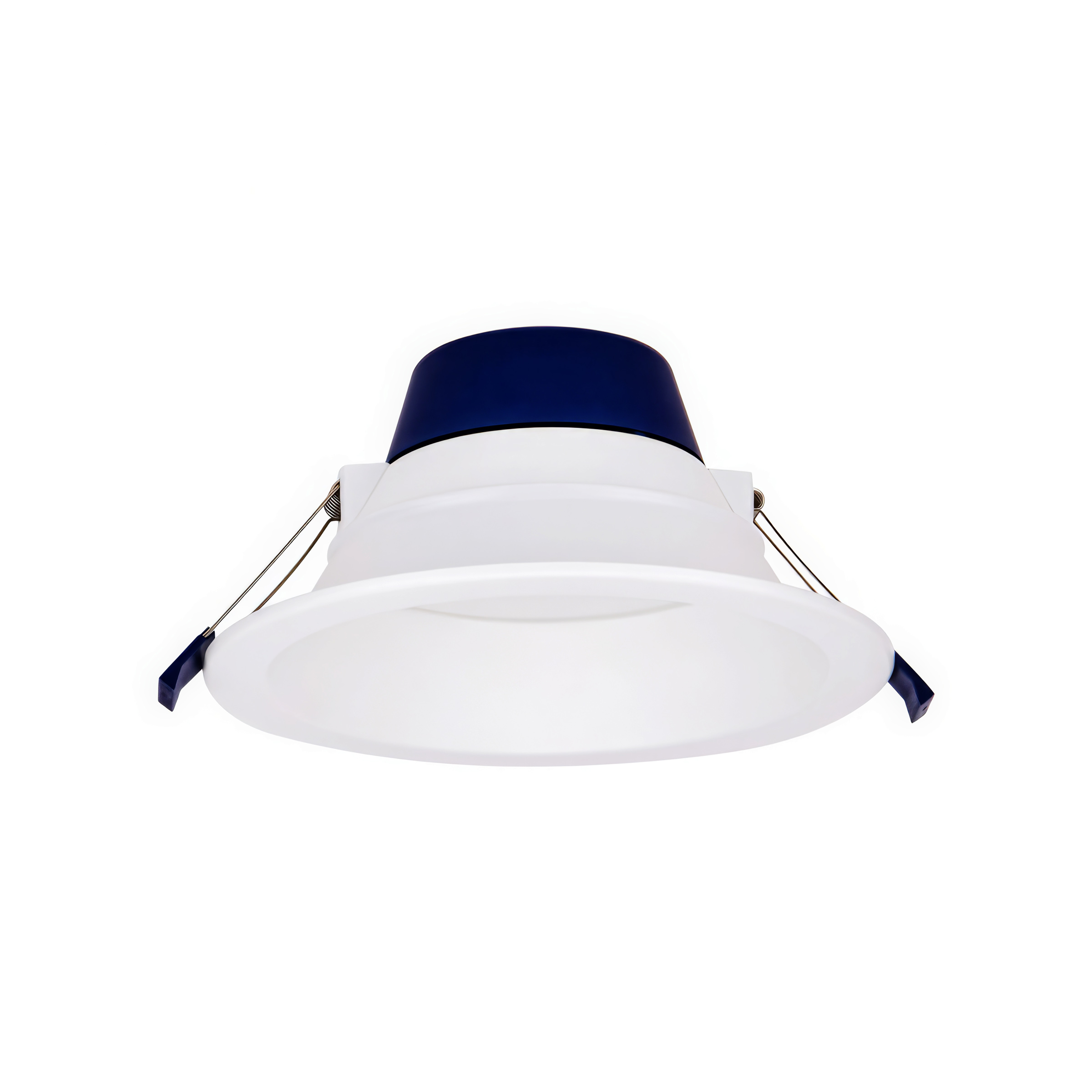

SIMPLITZ Downlight V2
SIMPLITZ Downlight V2 is the economic downlight solution for public areas with simple appearance design and rigid metal sheet body. Up to 120lm/W high efficacy and long lifetime 50,000hrs reduce TCO for projects of indoor applications. The deep recessed structure and imported diffuser brings good glare control and high uniformity.
Benefits
- Nice ID with stable quality
-
- Integrated design with built-in driver
- High-end finish to present better texture
- Metal sheet body
- 50,000hrs lifetime
-
- Good lighting experience with high performance
-
- Imported diffuser offers good uniformity
- Recessed structure design brings good glare control
- Without flicker
- Up to 120lm/W
-
- Easy to install
-
- Bigger frame to cover bigger cut-out in retrofit project
- 120mm pre-wire
-
- Whole range for all applications
-
- 4’’ / 5’’ / 6’’ / 8’’
- 5 powers from 8W-27.5W
- 3000K / 4000K / 6500K
-
Applications
- Lobby and Corridor
- Office
- Commercial Building
- Shopping Mall
Techical Info
| GENERAL INFORMATION | |
| Power | AC Line |
| Control | On/Off Only |
| Mounting | Recessed |
| IP Rating | IP20 (Indoor) |
| Lumen Maintenance | L70@25°C – 50,000hrs |
| Safety Approval | Electrical Protection Class I, CB, CCC |
| LIGHT TECHNICAL | |
| CCT | 3000K/4000K/6500K |
| Color Rendering Index (CRI) | RA≥80, R9>0 |
| SDCM | ≤5 |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Power Factor | >0.9 |
| Surge Protection | L-N 1KV, L/N-G 2KV |
| Cover Lens | PC |
| THD | 20% |
| Luminaire Body | SPCC |
| TEMPERATURE | |
| Ambient Temperature Range | -20 to +40 °C |
