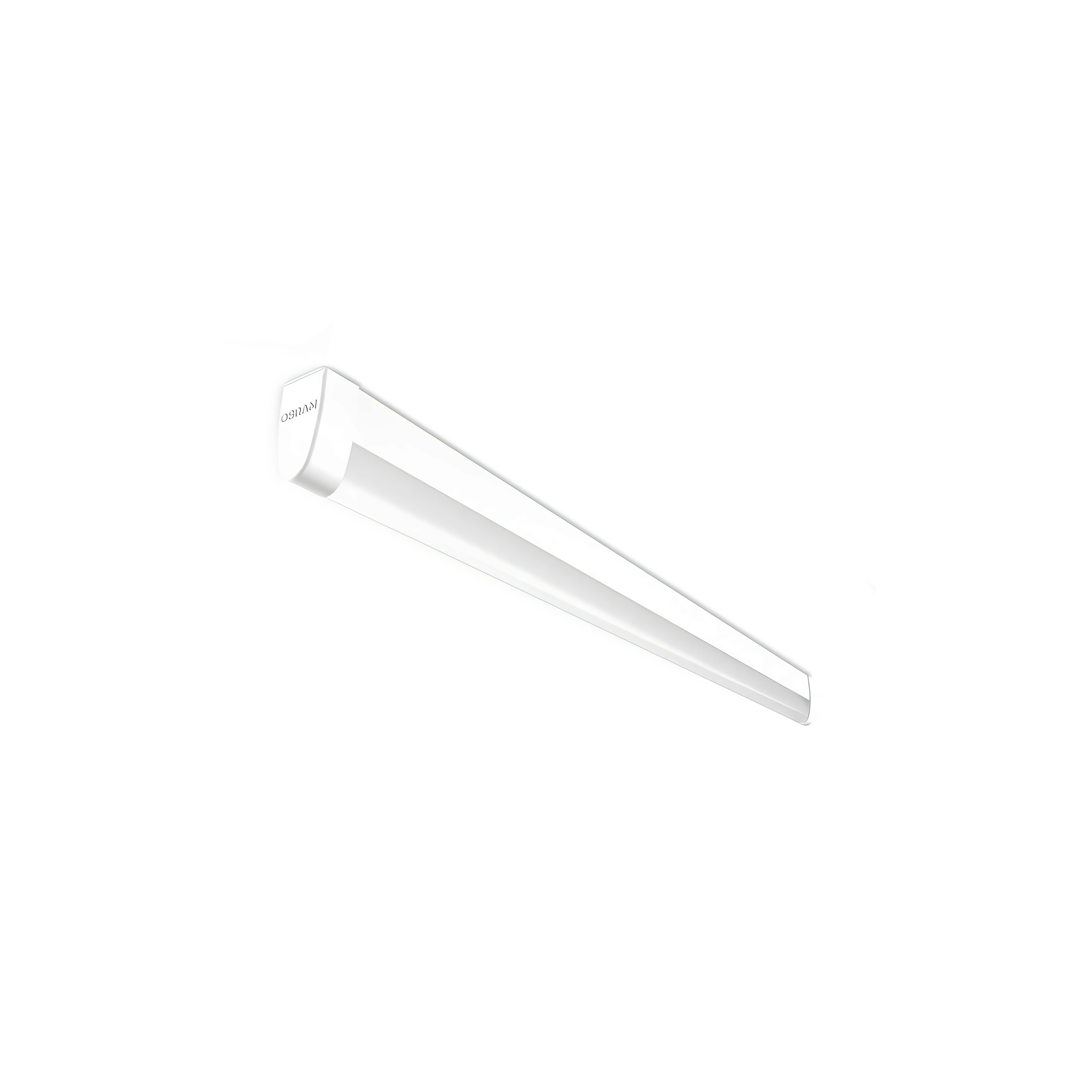

SIMPLITZ Cleanroom Batten
SIMPLITZ Cleanroom Batten is a high efficiency, reliable LED batten, dedicated designed for cleanroom illuminations. Its
streamlined profile can reduce air turbulence and avoid dust accumulation.
Benefits
- Dedicated designed for cleanroom
-
- Slim size, streamlined profile
- Reduce air turbulence and dust accumulation
- Amber version for photolithography area
-
- High efficiency and reliable
-
- System efficiency up to 130 lm/W
- 50,000 hours lumen maintenance
-
- Visual comfort
-
- No LED hot spot
-
Applications
- Cleanroom
- Workshop
- General Indoor Illumination
Techical Info
| GENERAL INFORMATION | |
| Power | AC Line |
| Control | ON/OFF only |
| Installation | Surface Mounting |
| IP Rating | IP40, IK03 (Indoor) |
| Lumen Maintenance | L70@25°C – 50,000hrs, 40,000hrs (for Amber) |
| Safety Approval | Electrical Protection Class II, CB, CCC |
| LIGHT TECHNICAL | |
| CCT | 4000K, 5700K (White) |
| Color Rendering Index (CRI) | >80 |
| SDCM | 4 (White) |
| Beam Angle | Wide |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Power Factor | 0.9 |
| Ripple Current | ±5% |
| Surge Protection | DM 2KV |
| Cover Lens | PC |
| Housing | PC |
| TEMPERATURE | |
| Ambient Temperature Range | -20 °C to +40 °C |
