General Details

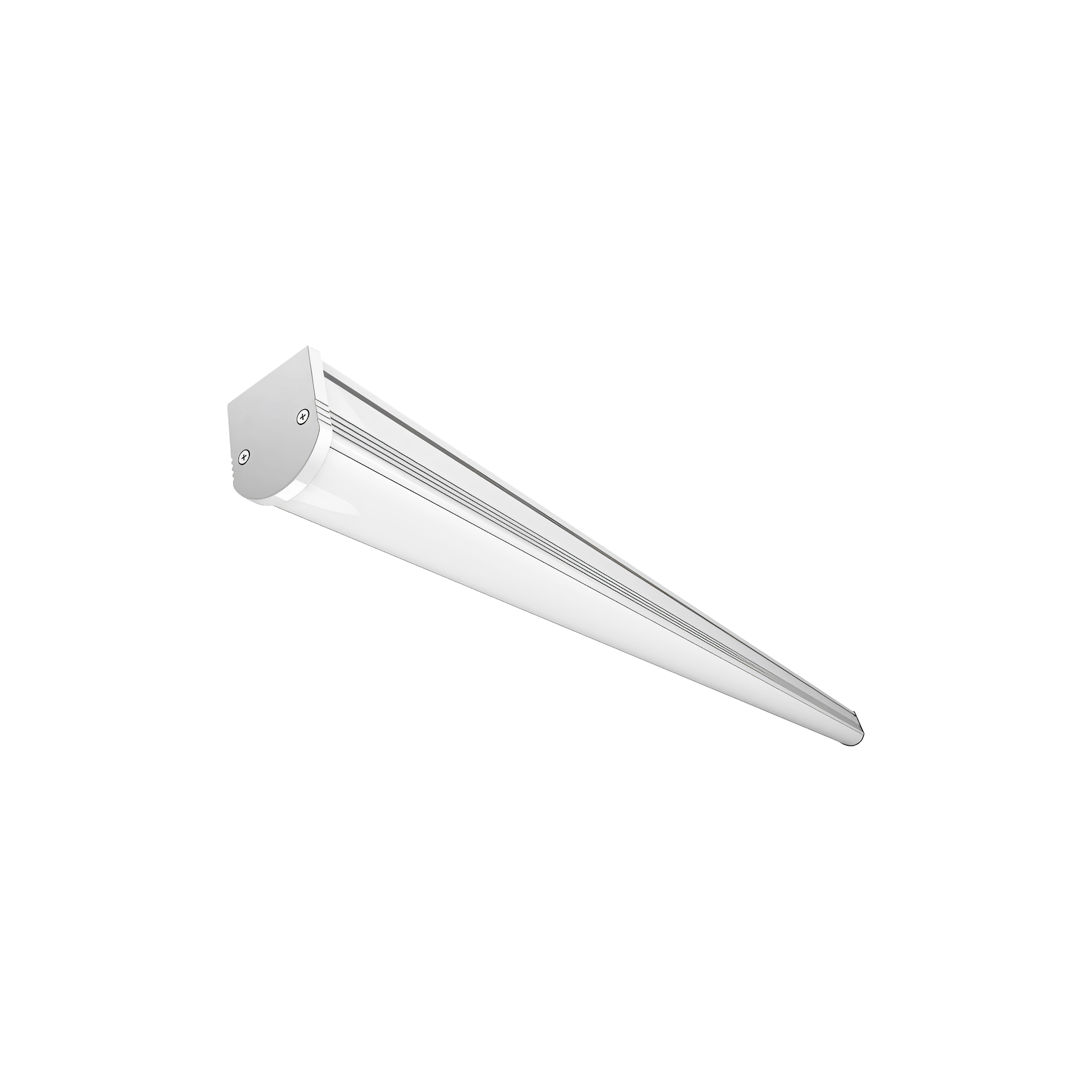

SIMPLITZ Batten V4
SIMPLITZ Batten V4 HE is an integrated design of LED batten solution replacing conventional batten of T5, T8 tube. SIMPLITZ batten V4 HE is designed with a robust, efficient, simple and safe integrated design, widely used in shopping centers, hypermarkets, workshops and other public lighting areas.
Benefits
- Simple shape with stable quality
-
- Compact and sleek integral design
- Easy installation
-
- Outstanding light performance
-
- Up to 165 lm/W
- Without flicker, Low glare
- IP40, IK08
- 50,000hrs lumen maintenance – L70@25°C
-
- Whole range for all applications
-
- Size 585mm, 1170mm, 1470mm
- Power range is from 16W to 60W
- CCT 4000K, 5700K, 6500K
- Control ON & OFF, 0-10V DIM, DALI
- Surface and suspended mounting
-
Applications
- Hypermarket, Retail Store
- Storage, Warehouse
- Workshop
- Public Building
Techical Info
| GENERAL INFORMATION | |
| Power | AC Line |
| Control | ON/OFF, 0-10V DIM, DALI |
| Installation | Surface, Suspended |
| IP Rating | IP40, IK08 (Indoor) |
| Lumen Maintenance | L70@25°C – 50,000hrs |
| Safety Approval | Electrical Protection Class I, CCC, RoHS |
| LIGHT TECHNICAL | |
| CCT | 4000K, 5700K, 6500K |
| Color Rendering Index (CRI) | >80 |
| SDCM | <4 |
| UGR | <27 |
| Beam Angle | 120° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Power Factor | ≥0.95 |
| Surge Protection | L-N 1KV, L/N-Ground 2KV |
| Housing | PC |
| TEMPERATURE | |
| Ambient Temperature Range | -30 to +40 °C |
