General Details

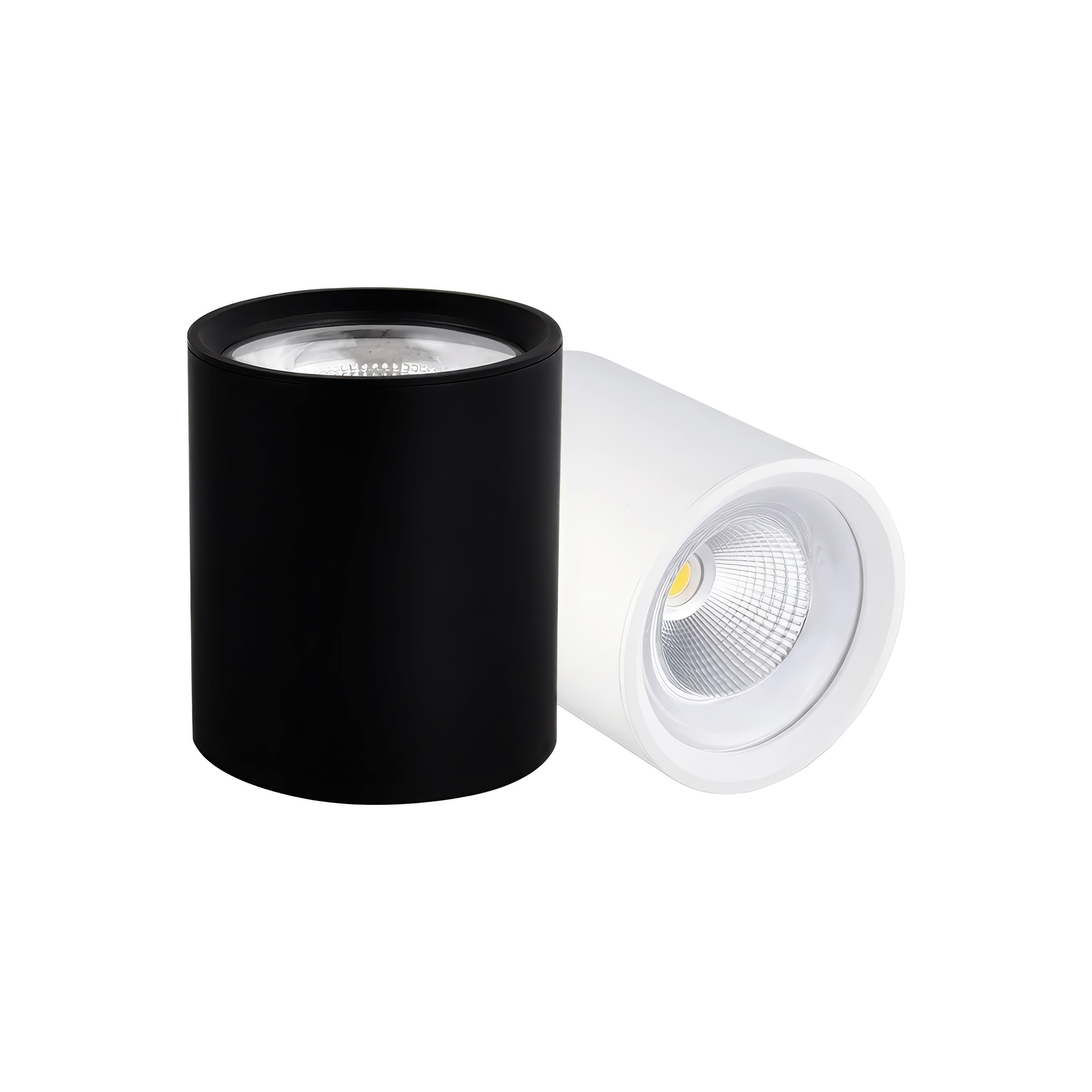

Luminax PDL-S
High-quality surface-mounted ceiling light featuring the latest COB LED chip, providing excellent illumination and uniformity. It offers a variety of beam angle options: 24°, 36°, 45°, and 60°. The Aluminium AL6063 profile ensures superior thermal dissipation. Available with an isolated driver in both dimmable and non-dimmable versions for optimal performance.
Applications
- Office
- Commercial Healthcare
- Warehouse
- Transportation
- Hospitality
Techical Info
| GENERAL INFORMATION | |
| Driver | On/Off (DALI Optional) |
| Mounting | Surface Mounted |
| IP Rating | IP54 |
| Housing | Aluminium Die-casting |
| LIGHT TECHNICAL | |
| CCT | 2700K / 3000K / 4000K / 5000K |
| Color Rendering Index (CRI) | >80 |
| SDCM | <4 |
| Beam Angle | 60° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| System Efficacy | Up to 116lm/W |
