General Details

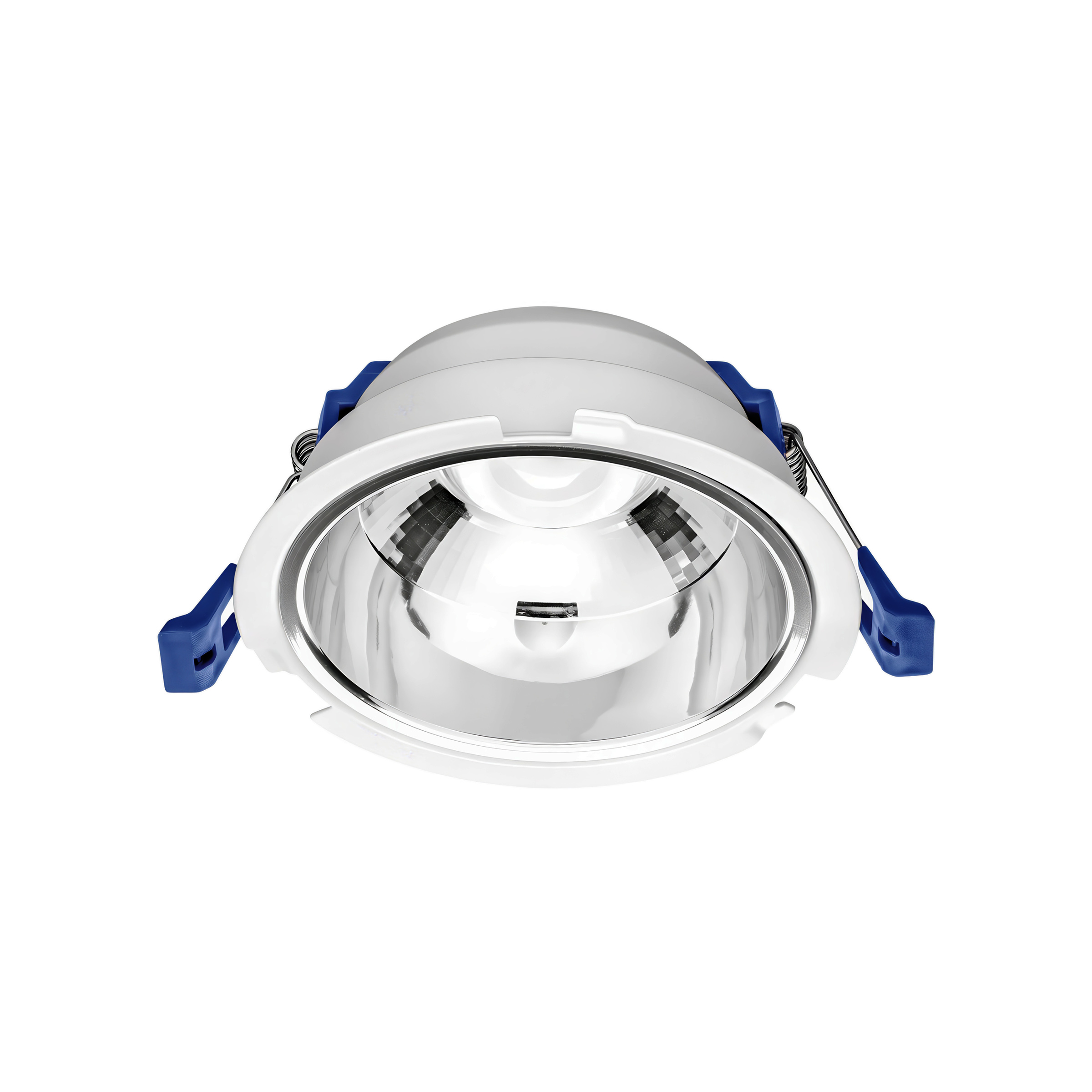

Luminax PDL-R
A highly efficient and sustainable LED downlight is available with recessed cut-out options of 100mm, 150mm, or 200mm. It features advanced thermal management through die-cast aluminium construction and comes with an IP20 standard rating. Options include a fixed or dimmable driver. The color temperature options are 3000K or 4000K, with a CRI >80. It meets UGR19 standards according to EN12464. The luminaire provides a luminous flux ranging from 1000-3000lm and has a lifespan of 50,000 hours at L70.
Applications
- Office
- Transportation
- Warehouse
- Commercial
- Healthcare
- Hospitality
Techical Info
| GENERAL INFORMATION | |
| Driver | Remote On/Off (DALI Optional) |
| Mounting | Recessed |
| IP Rating | IP20 |
| Housing | PC |
| LIGHT TECHNICAL | |
| CCT | 3000K / 4000K |
| Color Rendering Index (CRI) | >80 |
| SDCM | <4 |
| UGR | 16 / 19 / 22 |
| Beam Angle | 60° / 90° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| System Efficacy | Up to 110lm/W |
