General Details

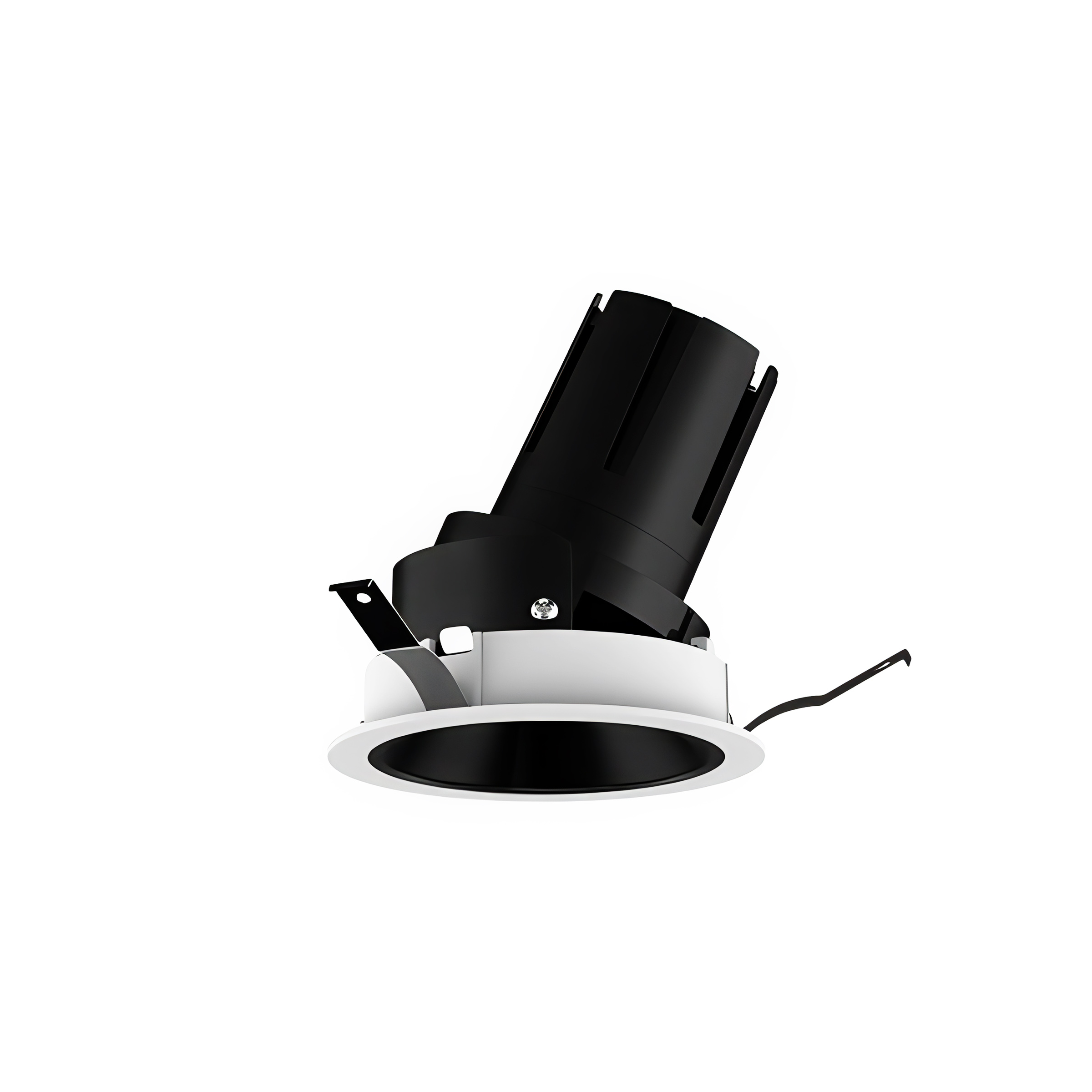

LEDTOUCH Spot Light
LEDTOUCH Spot Light series is the superior general lighting solution for hotel, shopping malls, office buildings and public spaces with simple appearance design and rigid metal body. Leading-edge optics and recessed structure design provide high lumen output and low glare which result in excellent lighting performance. LEDTOUCH Spot Light series offers a wide range of sizes, powers and beam angles for creating the perfect space hierarchy, space atmosphere and sense of well-being.
Benefits
- New ID with stable quality
-
- Recessed structure design brings good glare control
- Modular design is easy to configure
-
- Outstanding light performance
-
- Without flicker, Low glare
- CRI90, UGR<15
- Up to 85 lm/W
- 30,000hrs lifetime
-
- Whole range for all applications
-
- Size: 3″ / 3.5″ / 4″ / 5″ / 6″
- 8 powers: 8W / 15W / 20W / 24W / 28W / 33W / 38W / 42W
- 3000K / 4000K / 5700K
-
Applications
- Hotel
- Shopping Mall
- Office Building
- Retail Store
- Airport
- Metro Station
- Public Building
Techical Info
| GENERAL INFORMATION | |
| Power | AC Line |
| Control | On/Off |
| Mounting | Recessed |
| IP Rating | IP20 (Indoor) |
| Lumen Maintenance | L70@25°C – 30,000hrs |
| Safety Approval | Electrical Protection Class II, CB, CCC |
| LIGHT TECHNICAL | |
| CCT | 3000K/4000K/6500K |
| Color Rendering Index (CRI) | >90 |
| SDCM | <5 |
| UGR | <15 |
| Beam Angle | 15°/ 24°/ 38° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Power Factor | >0.9 |
| Surge Protection | Line-to-line 1KV, Line-to-ground 2KV |
| Cover Lens | PMMA |
| Housing | Aluminium |
| TEMPERATURE | |
| Ambient Temperature Range | -20 to +40 °C |
