General Details

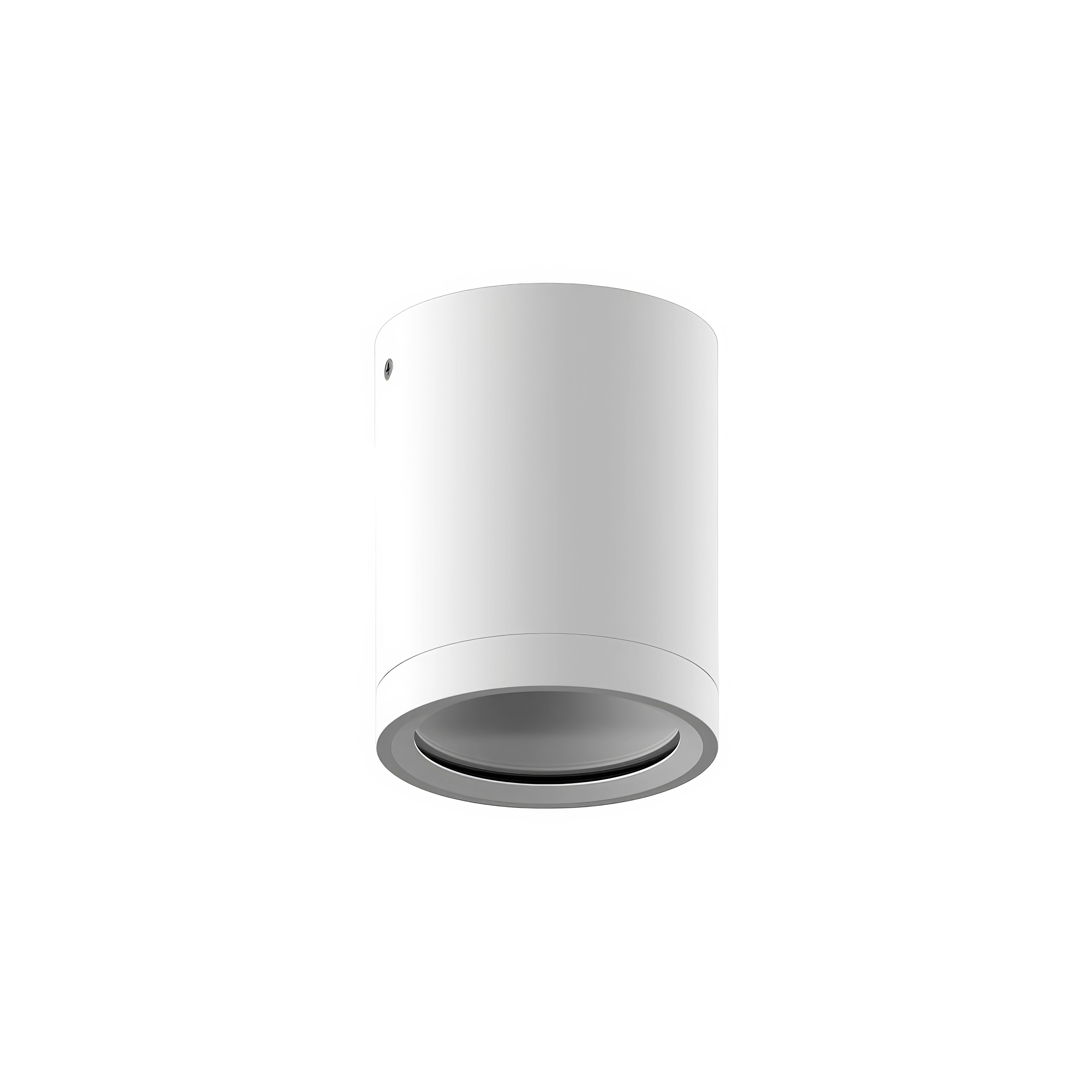

LEDTOUCH Cylinder Downlight V2
LEDTOUCH Cylinder Downlight series is the ideal energy-saving replacement for 35W, 70W and 150W metal halide down- lights, which provides high quality lighting for high-ceiling spaces for indoor applications. LEDTOUCH Cylinder Downlight series have full available in size, power and beam angle on request for better energy efficiency and operation efficiency.
Benefits
- Energy saving
-
- 50% energy saving compared to traditional downlight
-
- Outstanding light performance
-
- Without flicker, Low glare, UGR<19
- Up to 110 lm/W
- 30,000hrs lifetime
-
- Whole range for all applications
-
- Size: 3.5″ / 4″ / 5.5 “/ 6″ / 8″ / 10”
- 12 kinds of powers: 8W / 15W / 20W / 24W / 28W / 33W / 35W / 50W / 75W / 100W / 120W / 150W
- CCT: 3000K / 4000K / 5000K
-
Applications
- Metro Station
- Airport
- Office Building
- Shopping Mall
- Public Buildings
Techical Info
| GENERAL INFORMATION | |
| Power | AC Line |
| Control | On/Off Only |
| Mounting | Surface / Suspend Mounting (Accessories purchased separately) |
| IP Rating | IP65 (Indoor) |
| Lumen Maintenance | L70@25°C – 30,000hrs |
| Safety Approval | Electrical Protection Class I, CB, CCC |
| LIGHT TECHNICAL | |
| CCT | 3000K/4000K/5000K |
| Color Rendering Index (CRI) | >90 |
| SDCM | <5 |
| Beam Angle | 4°/38°/57° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Surge Protection | (1/2KV) L/N /LN/PE acc IEC 61000-3-2 |
| Cover Lens | PMMA |
| Housing | Aluminium |
| TEMPERATURE | |
| Ambient Temperature Range | -10 to +40 °C |
