LEDENVO LED Streetlight V2

Reliable, flexible, cost-effective road lighting

General Details

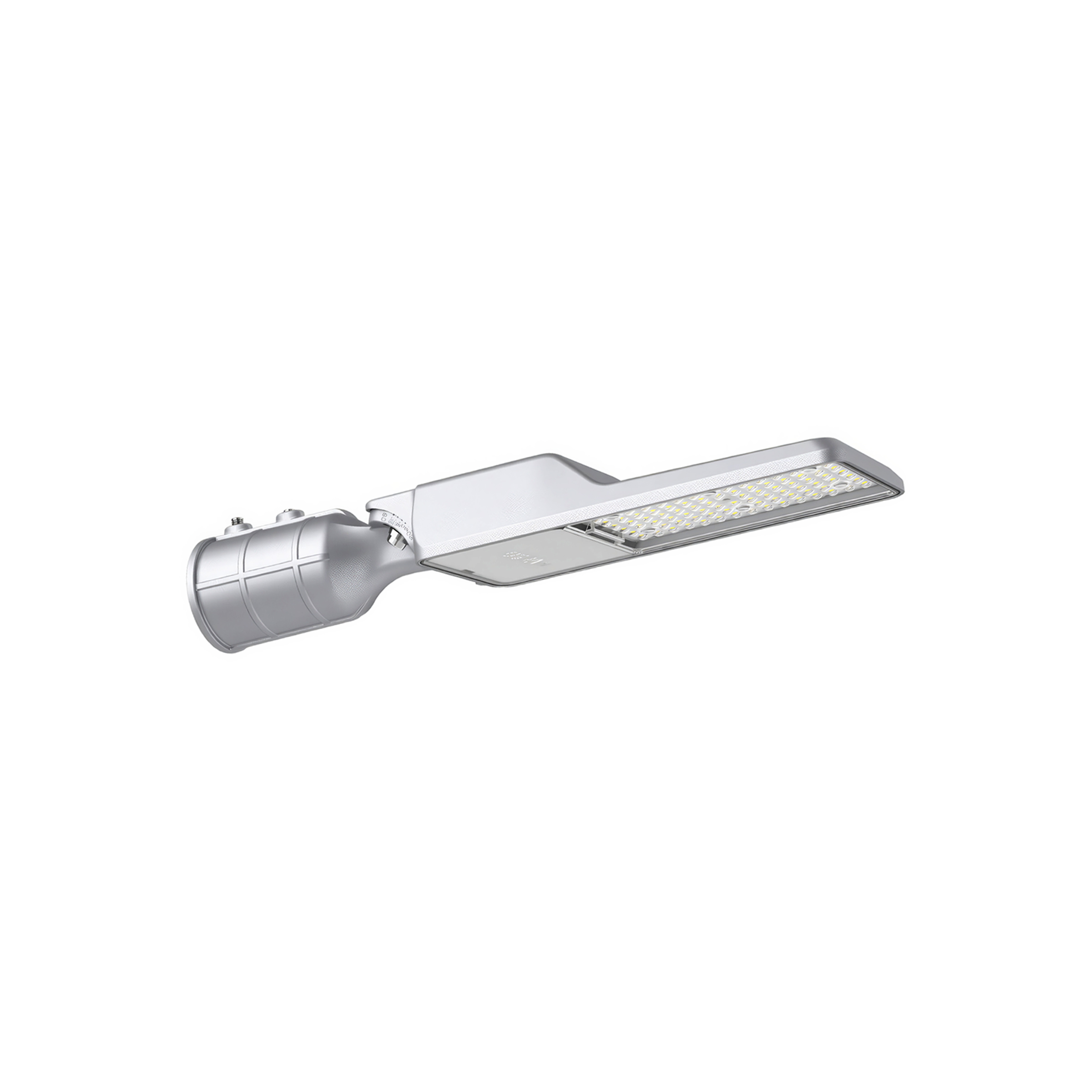

LEDENVO LED Streetlight V2

LEDENVO LED Street light V2 series is the OSRAM latest cost-effective new generation streetlight. Classic and simple appearance, flexible and adjustable installation, 10KV lightning protection device, to provide beautiful, flexible, reliable, energy- saving lighting solutions, to ensure road safety and pedestrian comfort. LEDENVO Street Light V2 is suitable for ME2-ME5 road lighting applications, such as some urban road lighting, rural road lighting, etc.

Benefits

  • Balance performance
      • Efficacy up to 150lm/W
      • Power ranges from 20W to 150W
      • CCT available 3000K, 4000K and 5700K
      • Choice of 3 years warranty and 5 years warranty
  • Robust and Durable
      • Independent 10KV lightning protection device
      • Robust aluminium body
      • High protection level IP66 & IK10
  • Flexible Installation
      • Suitable for Post-top or Side-entry mounting
      • Tilt angle adjustable
      • Mounting on 40–60mm diameter pole

Applications

  • Major Road, Local Road, Residential Road, Rural Road
  • Commercial District Road
  • Industrial Area Road
  • Parking Lot
Techical Info
GENERAL INFORMATION
Power AC Line
Control ON / OFF
Installation Side-entry or Post-top mounting
IP Rating IP66 / IK10
Safety Approval Electrical Protection Class I, CQC, CB, ROHS
LIGHT TECHNICAL
CCT 3000K, 4000K, 5700K, Other on request
Color Rendering Index (CRI) 70, Other on request
SDCM 5
Beam Angle SNB (155° x 55°)
OPERATING AND ELECTRICAL
Input Voltage 220 to 240 V
Power Factor >0.95 (@220V& full load)
Surge Protection Independent surge protection device, Line-to-line 10KV, Line-to-ground 10KV
Optical PC, Polycarbonate
Housing ADC12 Aluminum
Color RAL 9006, Other on request
TEMPERATURE
Ambient Temperature Range -30 °C to +50 °C
