General Details

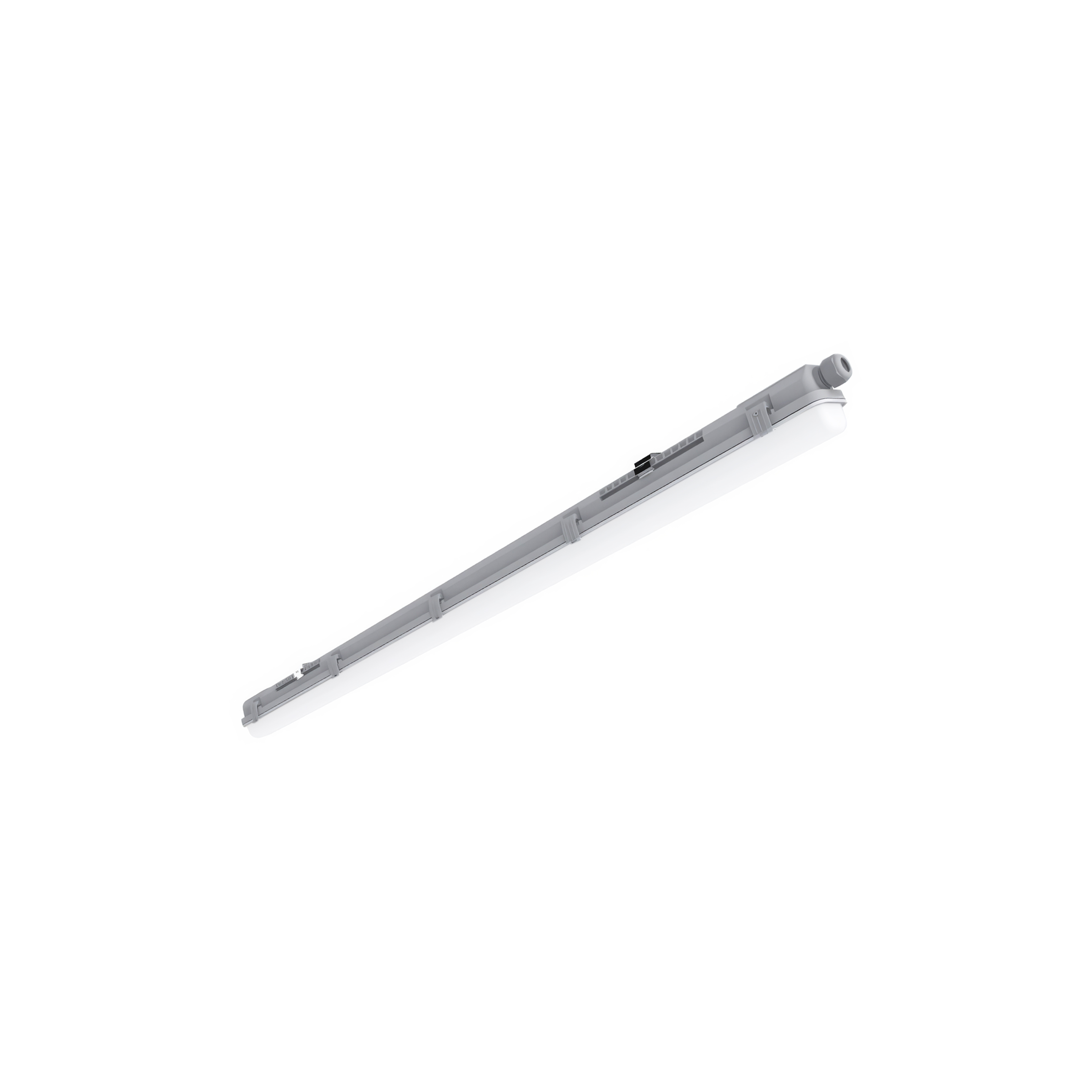

LEDCOMFO Waterproof
LEDCOMFO Waterproof series is a robust luminaire suitable for humid and dusty environments. LED technology offers excellent energy-saving comparing to traditional fluorescent tubes. LEDCOMFO Waterproof series is an ideal choice to replace conventional waterproof.
Benefits
- Unique prismatic lens
-
- 4 wattage ranges
- Lumen output from 2,500lm to 8,400lm
- Color temperature 3000K/4000K/5700K/6500K
- ON/OFF and DALI version
-
- Robust and reliable
-
- 50,000hrs lifetime
- IP65, IK08 rated
-
- Safe and efficient
-
- System efficacy up to 140lm/W
- Durable dual extrusion PC
-
Applications
- Factory
- Warehouse
- Underpass
- Car Park
Techical Info
| GENERAL INFORMATION | |
| Power | AC Line |
| Control | ON/OFF, DALI |
| Installation | Surface and suspended mounting |
| IP Rating | IP65, IK08 (Indoor) |
| Lumen Maintenance | L70@25°C – 50,000hrs |
| Safety Approval | Electrical Protection Class I, CE, UKCA, RoHS |
| LIGHT TECHNICAL | |
| CCT | 3000K / 4000K / 6500K |
| Color Rendering Index (CRI) | >80 |
| SDCM | <5 |
| UGR | ≤27 |
| Beam Angle | 120° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Power Factor | >0.95 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Line-to-line 1KV, Line-to-ground 2KV |
| Cover Lens | PC |
| Housing | PC Housing |
| TEMPERATURE | |
| Ambient Temperature Range | -30 °C to +40 °C |
