General Details

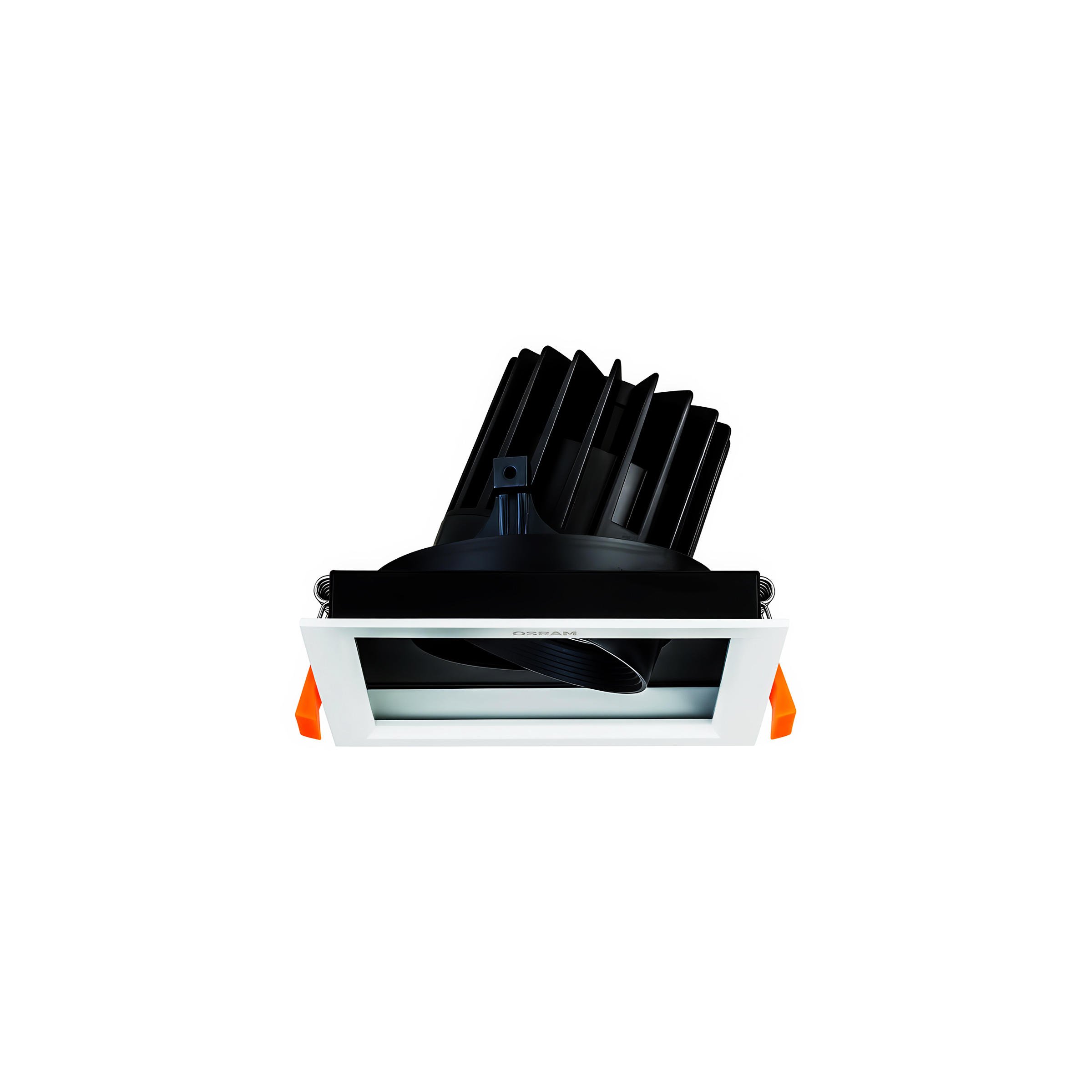

LEDCOMFO Multi-head
LEDCOMFO Multi-head series is a cost-effective LED replacement for traditional multiple-head spot light. The series is available up to three heads with multiple power options and beam angles for different application requirements. Thanks to its adjustable structure, multiple objects can be illuminated from different directions. LEDCOMFO Multi-head series offers good glare control with multiple beam angles and is the ideal choice for demanding accent lighting with a limited budget.
Benefits
- Flexible product options
-
- 15° / 24° / 40° beam angle options
- 1 / 2 / 3 heads
- 30° vertical adjustable, 180° horizontal adjustable
-
- Reliability and easy installation
-
- Individual driver for each module and failure of single module won’t affect others
- Die-casting housing
- Rimless design for easy installation
-
- Quality light and energy saving
-
- Best-in-class COB platform provides consistent and even color and brightness
- More than 50% energy saving compared to traditional multi-head spot light
- Concave stepping cover design to provide good glare control
-
Applications
- Merchandise Display
- Commercial Building
- Retail Store
- Shopping Mall
- Lobbies and Corridor
- Households
Techical Info
| GENERAL INFORMATION | |
| Power | AC Line |
| Control | On/Off Only |
| Installation | Recessed |
| IP Rating | IP20 (Indoor) |
| Lumen Maintenance | L70@25°C – 25,000hrs |
| Safety Approval | Electrical Protection Class II, CB, CCC, RoHS |
| LIGHT TECHNICAL | |
| CCT | 3000K, 4000K, 5700K |
| Color Rendering Index (CRI) | 80 |
| SDCM | 3 |
| Beam Angle | 15°, 24°, 40° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Power Factor | 0.95 |
| Surge Protection | Line-to-line 0.5KV |
| Cover Lens | PC reflector and aluminium plating |
| Housing | Die-casting aluminium housing, black |
| TEMPERATURE | |
| Ambient Temperature Range | -20 to +40 °C |
