General Details

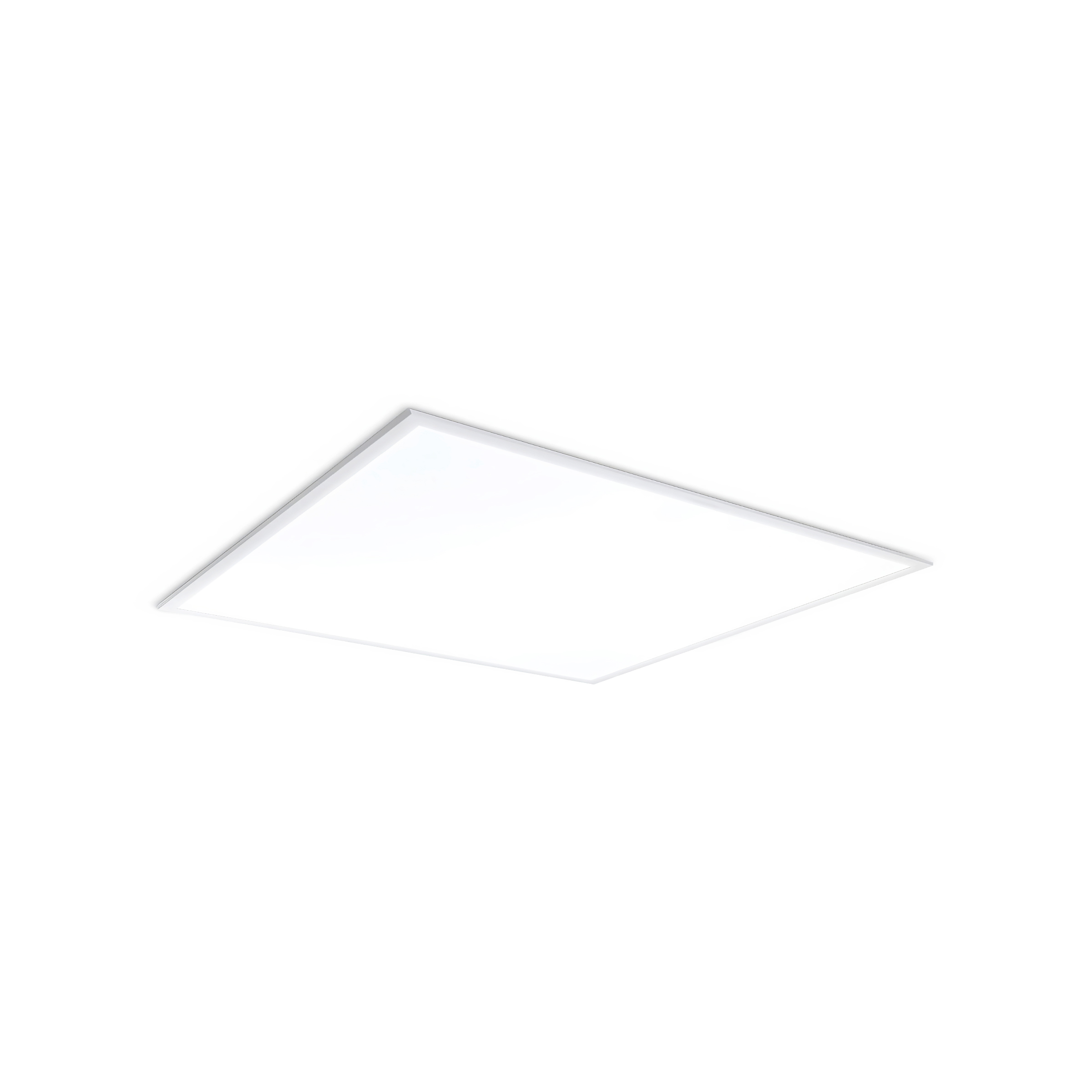

LEDCOMFO Louver V3
LEDCOMFO Louver V3 is the latest LED back-lit louver solution for office applications. The newly product design provides high uniformity based on 2ft×2ft, 4ft×1ft, 4ft×2ft size, which available for four kinds of installation including recessed, suspended, PCV, integrated ceiling, fulfilling the different requirements of customers.
Benefits
- Comfortable with high uniformity
-
- High quality diffuser with inside lens ensures high uniformity
- Without flicker
- Up to 110lm/W
-
- Stable performance with safety and reliability
-
- 1.2KV line to line surge protection
- PF 0.95
- Strong frame with extrusion aluminum
- IP20 (IP40 for front lighting panel)
- 50,000hrs lumen maintenance – L70@25°C
-
- Full range to fulfill all applications
-
- 2ft×2ft, 4ft×1ft, 4ft×2ft
- Recessed, suspended, integrated ceiling, PCV
- 3000K, 4000K, 6500K
-
Applications
- Office
- Metro
- Hospital
- Public Building
Techical Info
| GENERAL INFORMATION | |
| Power | AC Line |
| Control | ON/OFF |
| Installation | Recessed / Suspended / Integrated Ceiling / PCV |
| IP Rating | IP20 (Indoor), IP40 for front lighting panel |
| Lumen Maintenance | L70@25°C – 50,000hrs |
| Safety Approval | Electrical Protection Class II, RoHS, REACH |
| LIGHT TECHNICAL | |
| CCT | 3000K, 4000K, 6500K |
| Color Rendering Index (CRI) | >80 |
| SDCM | <5 |
| UGR | <22 |
| Beam Angle | 100° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Power Factor | 0.95 |
| Surge Protection | Line to line 1.2KV |
| Lens | PMMA |
| Cover | PS |
| Frame | Aluminium Frame |
| Housing | SPCC |
| TEMPERATURE | |
| Ambient Temperature Range | -20 to +40 °C |
