General Details

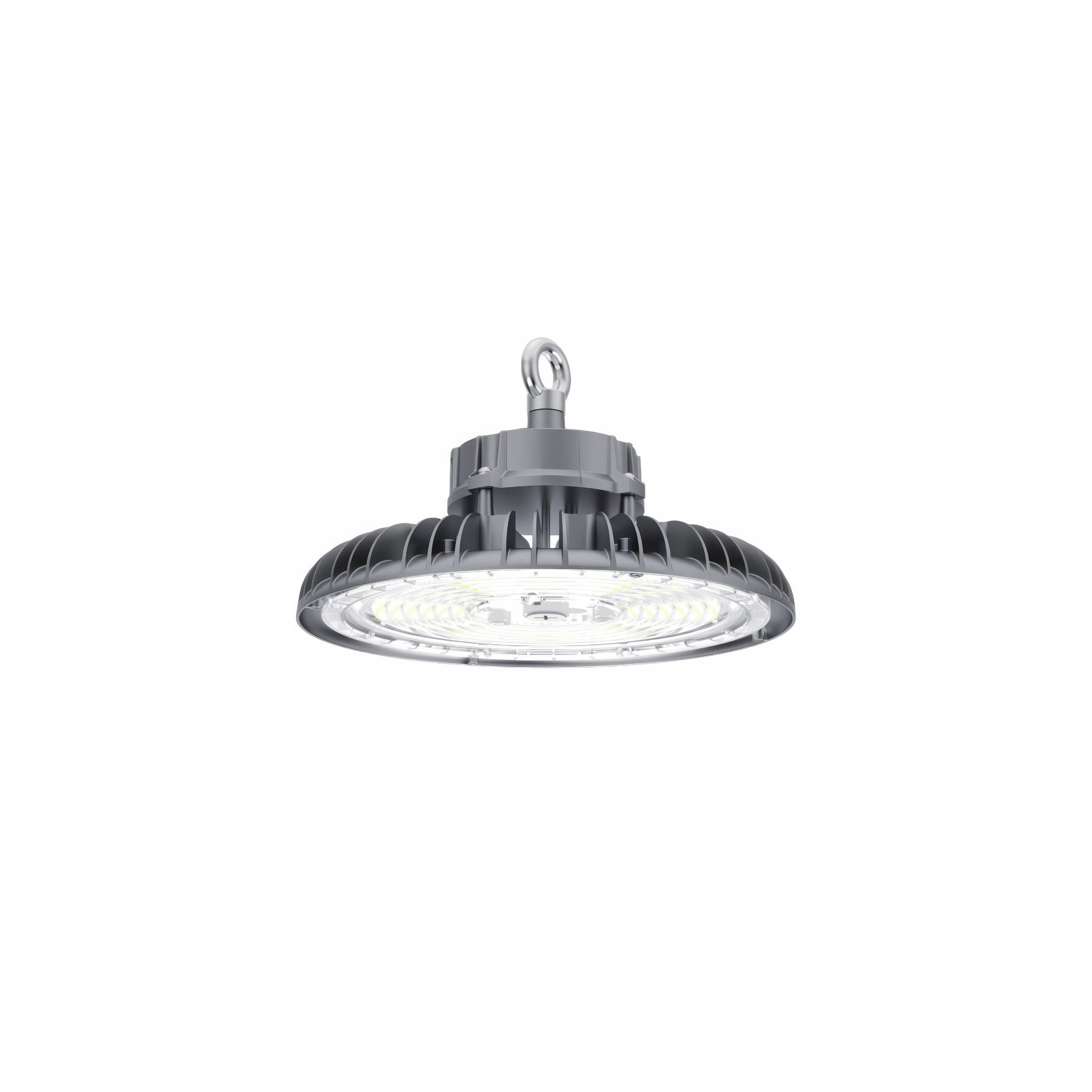

LEDCOMFO Highbay V4
LEDCOMFO Highbay V4 series is highly efficient and reliable LED highbay luminaries that can be used in dusty and humid environment. The well-designed die-casting aluminium heat sink with high-efficiency lens achieve a perfect balance between convenience and practicality. LEDCOMFO Highbay V4 series can replace the traditional HID highbay directly and provide the best solution for high ceiling industrial lighting and commercial lighting.
Benefits
- Flexible options
-
- 9 wattage ranges
- Lumen output from 8,000lm to 38,400lm
- Color temperature 3000K / 4000K / 5700K / 6500K
- ON/OFF, 0-10V DIM and DALI version
-
- Safe and reliable
-
- 50,000hrs lifetime
- IP65, IK08 rated
-
- Safe and efficient
-
- System efficacy up to 160lm/W
- Eye safety according to IEC
- CRI80 for better color representation
- Backup hook reserved for safety chain/cable
-
- Versatile application
-
- Multiple mounting methods
- Compact and easy installation
-
Applications
- Workshop, Assembly Line
- Warehouse, Logistic
- Industrial and Commercial Hall
- Public Areas (Airport, Station, Stadium)
Techical Info
| GENERAL INFORMATION | |
| Power | AC Line |
| Control | ON/OFF, 0-10V DIM, DALI |
| Installation | Suspended, Surface Mounting (The bracket accessories need to be purchased separately) |
| IP Rating | IP65, IK08 (Indoor) |
| Lumen Maintenance | L70@35°C – 50,000hrs |
| Safety Approval | Electrical Protection Class I, CCC, CE, UKCA, RoHS |
| LIGHT TECHNICAL | |
| CCT | 3000K, 4000K, 5700K, 6500K |
| Color Rendering Index (CRI) | >80 |
| SDCM | ≤5 |
| UGR | ≤27 |
| Beam Angle | 60°, 90° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Power Factor | >0.95 |
| Total Harmonic Distortion | <15% |
| Surge Protection | Line-to-line 6KV, line-to-ground 6KV |
| Cover Lens | Clear PC Cover |
| Housing | Aluminium housing |
| TEMPERATURE | |
| Ambient Temperature Range | -30 °C to +50 °C |
