General Details

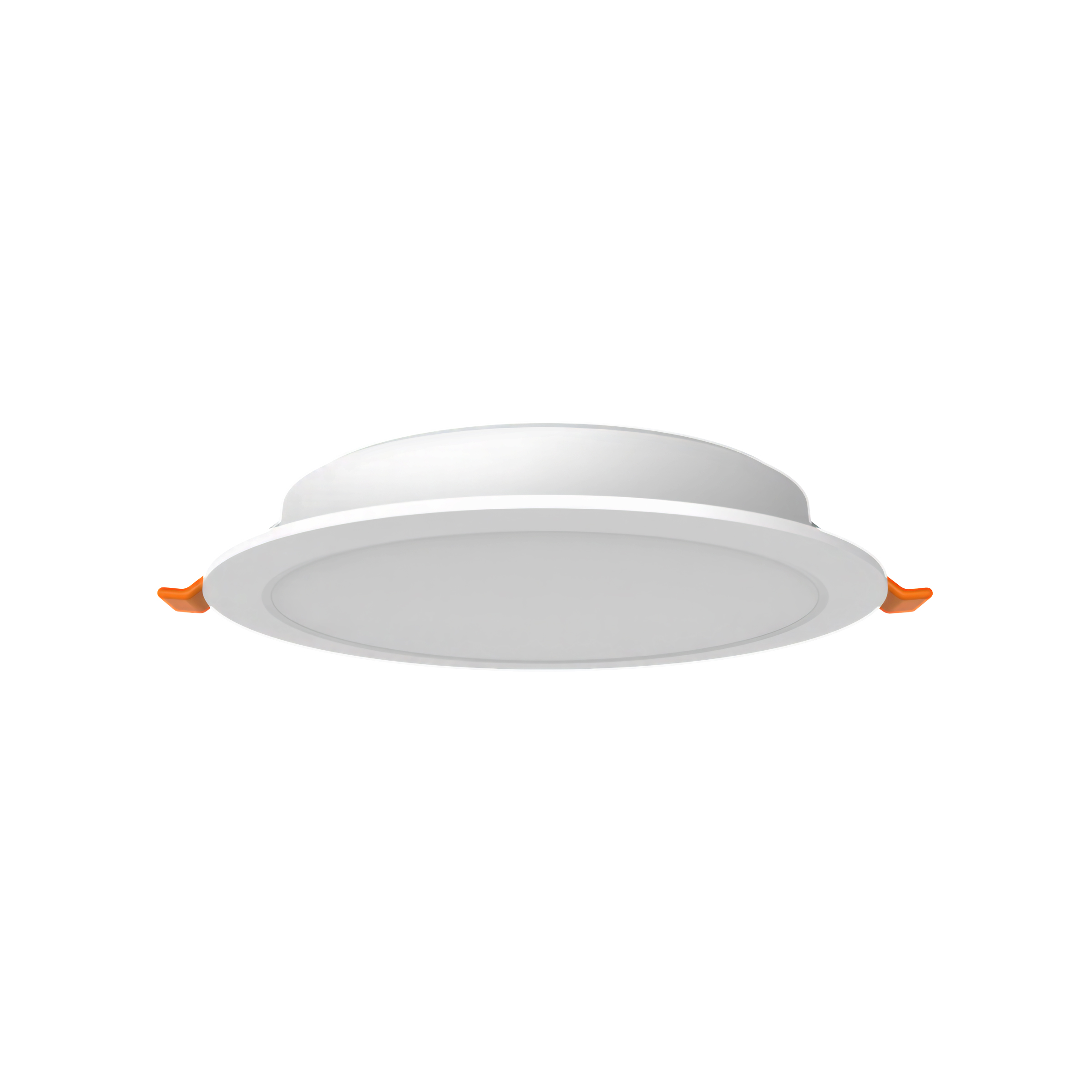

LEDCOMFO Downlight V4
LEDCOMFO Downlight V4 is the latest generation lighting solution for large space illumination. The slim and integrated body design provides high quality and safety based on 30,000 hours lifetime and all size options 4”/5”/6”/8”.
Benefits
- Comfortable lighting experience
-
- Up to 105 lm/W
- CRI>80
- Wide beam angle 110°
-
- Rigidness & safety
-
- IP40
- 1KV line-to-line surge protection
- Long lifetime up to 30,000 hours
-
- Easy to install
-
- Integrated design
- Slim design with the height of 26-30mm
-
- Full range to meet all applications request
-
- Four size options 4” / 5” / 6” / 8”
- Full power range 8W / 10W / 16W / 24W
- 3000K, 4000K, 6500K
-
Applications
- Commercial Building
- Offices
- Public Area
- Workshops
Techical Info
| GENERAL INFORMATION | |
| Power | AC Line |
| Control | On/Off Only |
| Mounting | Recessed |
| IP Rating | IP20 (Indoor) |
| Lumen Maintenance | L70@25°C – 50,000hrs |
| Safety Approval | Electrical Protection Class II, RoHS, REACH |
| LIGHT TECHNICAL | |
| CCT | 3000K/4000K/6500K |
| Color Rendering Index (CRI) | >80 |
| SDCM | <5 |
| Beam Angle | 110° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Power Factor | 0.5 |
| Surge Protection | Line to line 1KV |
| Cover Lens | PC |
| Housing | PP |
| TEMPERATURE | |
| Ambient Temperature Range | -20 to +40 °C |
