General Details

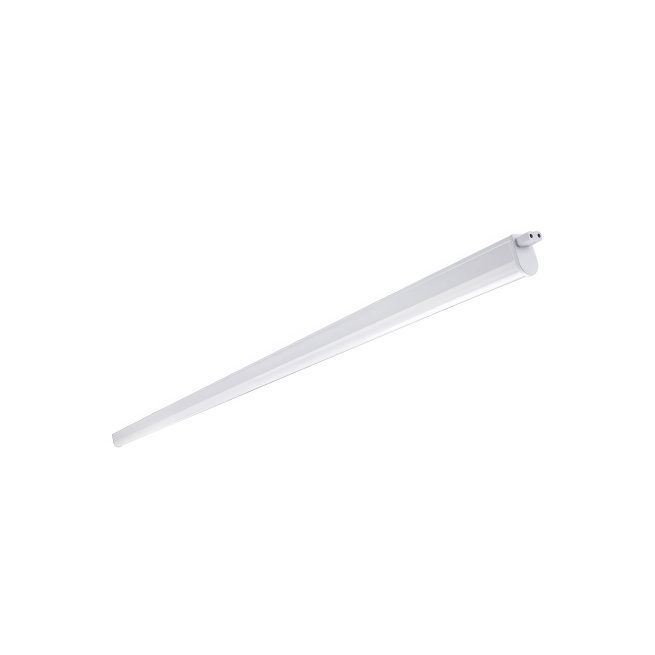

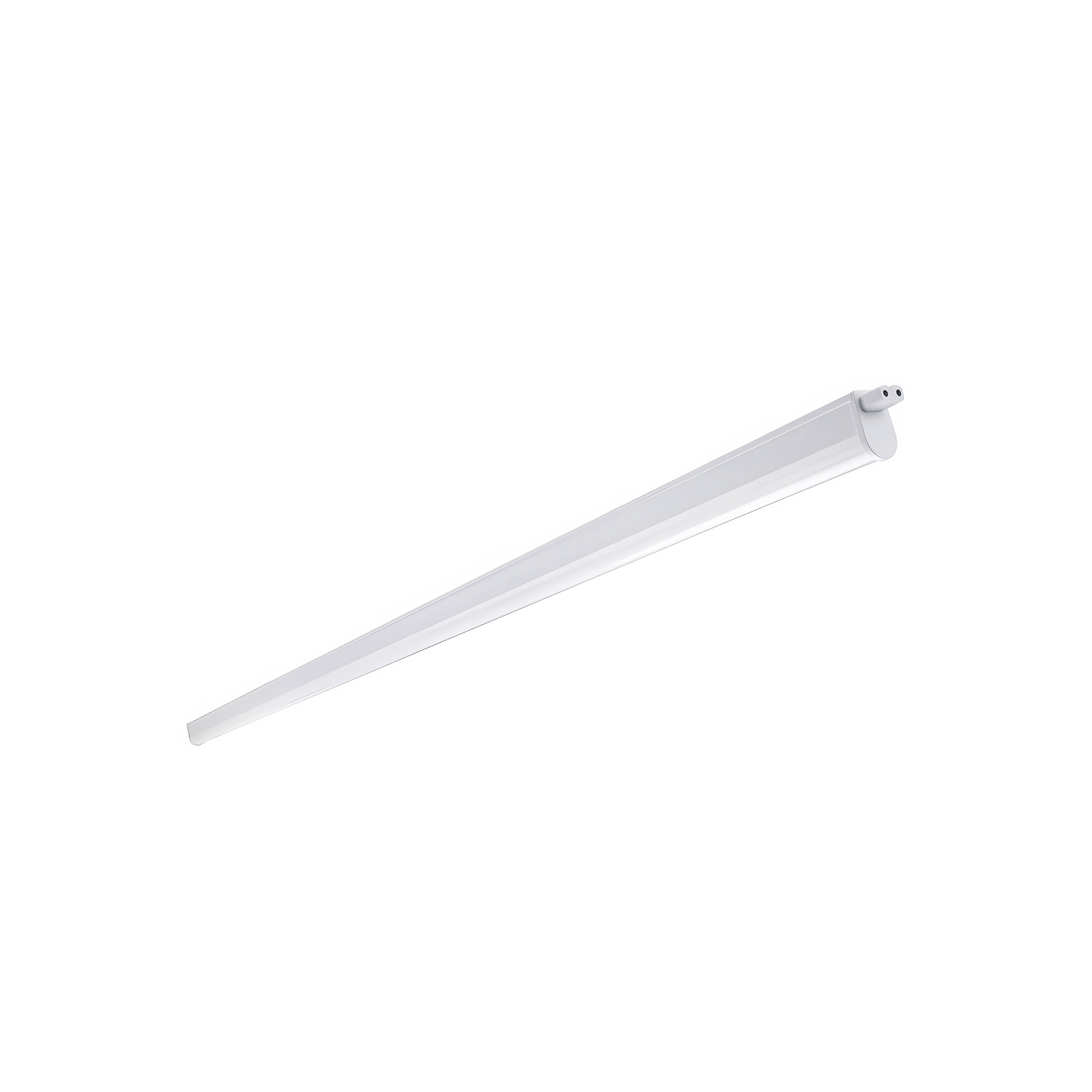

LEDCOMFO Batten G4
LEDCOMFO Batten G4 is the latest batten light solution which provides the same performance and optimized ID design upon the G3 version. With the double injection technology, this product series has a robust structure with longer length that enables you to replace existing T5 batten more conveniently.
Benefits
- Excellent lighting experience
-
- Less than 5 steps SDCM offers consistent CCT
- Good uniformity based on optimized design
- Seamless connection without obvious dark spot
- Flicker-free
-
- Rigidness
-
- Double injection body provides robust structure
- Strong and durable end cap
- 20,000hrs lifetime
-
- Flexibility
-
- 1ft / 2ft / 3ft / 4ft for choices
- Longer length ensures easy replacement for traditional T5 batten
- Full range of accessories
-
Applications
- Cove Lighting
- Indoor Contour Lighting
- Under Shelf Lighting
- Light Box
Techical Info
| GENERAL INFORMATION | |
| Power | AC Line |
| Installation | Surface Mounted |
| IP Rating | IP20 (Indoor) |
| Lumen Maintenance | L70@25°C – 20,000hrs |
| Safety Approval | Electrical Protection Class II, CB, CCC, Photo-biological safety |
| LIGHT TECHNICAL | |
| CCT | 3000K, 4000K, 6500K |
| Color Rendering Index (CRI) | 80 |
| SDCM | ≤5 |
| Beam Angle | 110° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Power Factor | 0.5 |
| Surge Protection | Line-to-line 1KV, line-to-ground 2KV |
| Ripple Current | ±5% |
| Cover Lens | PC |
| Housing | PC |
| TEMPERATURE | |
| Ambient Temperature Range | -20 to +35 °C |
