General Details

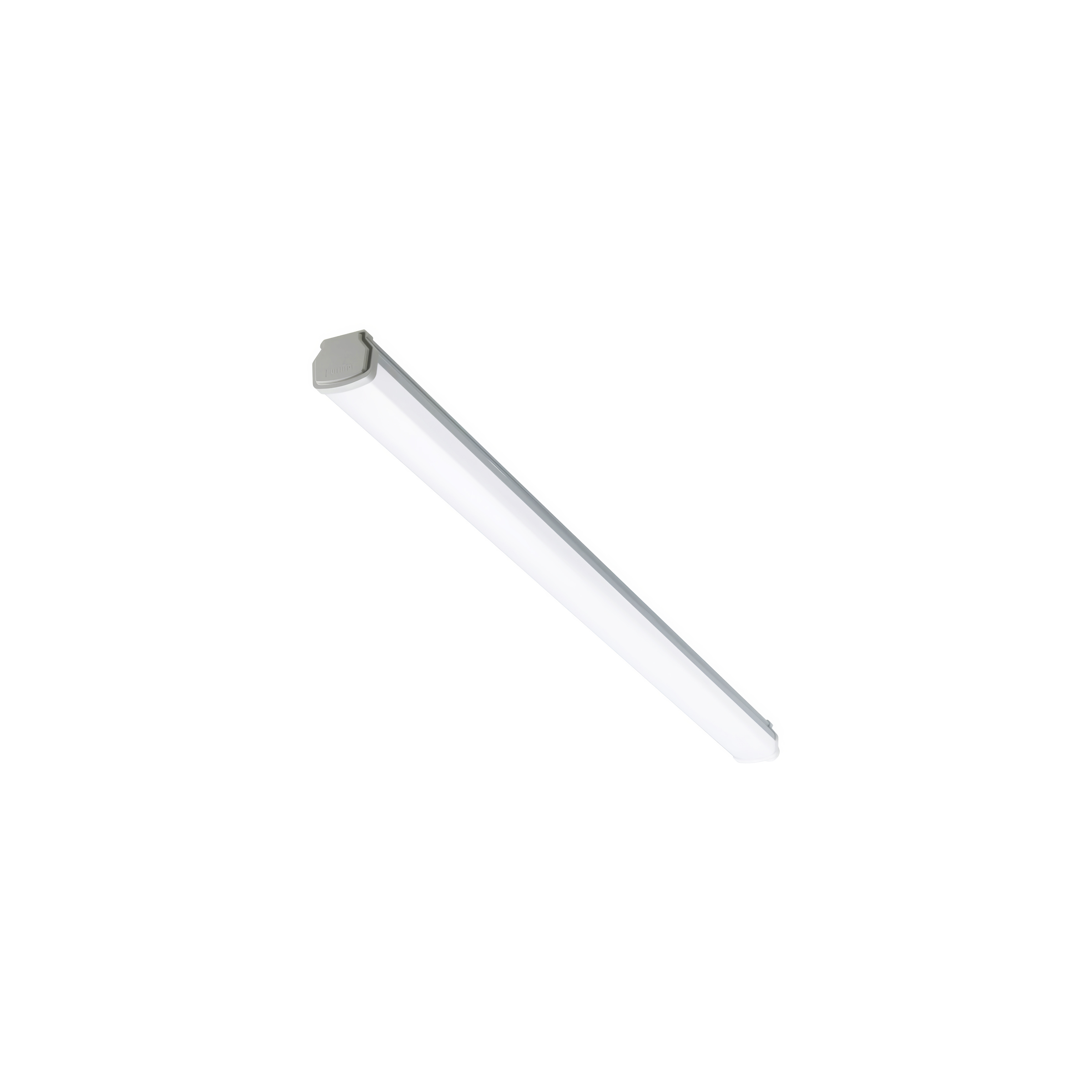

GreenUp Waterproof
GreenUp Waterproof is a high efficient and reliable LED luminaire, designed for industrial application with humid and dust protection requirement. It delivers significant energy savings of up to 62% as compared to conventional dual-T8 waterproof. Utilization of UV-shield PC and extrusion process makes it suitable for semi-outdoor environments, and together with the built-in breather ensure a sound performance. With professional optic design and Philips LED module gives the most comfortable light experience of CRI 85.
Benefits
- High energy efficient
- Long lifetime
- Flexible installation
Features
- System efficacy of 120lm/W
- 50,000hrs L70 lifetime
Applications
- Industry
- Corridor / Walkway
- Indoor Car Park
Techical Info
| LIGHT TECHNICAL | |
| Optic Cover Type | – |
| Color Rendering Index (CRI) | >80 |
| Luminous Efficacy (Rated) (Nom) | 120 lm/W |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| TEMPERATURE | |
| Ambient Temperature Range | -20 to +45 °C |
| CONTROLS AND DIMMING | |
| Dimmable | No |
| MECHANICAL AND HOUSING | |
| Housing Color | Gray and White |
| APPROVAL AND APPLICATION | |
| CE Mark | – |
| Protection Class IEC | Safety Class II |
| Mech. Impact Protection Code | IK08 |
| Ingress Protection Code | IP66 |
| INITIAL PERFORMANCE (IEC COMPLIANT) | |
| Luminous Flux Tolerance | +/-10% |
