General Details

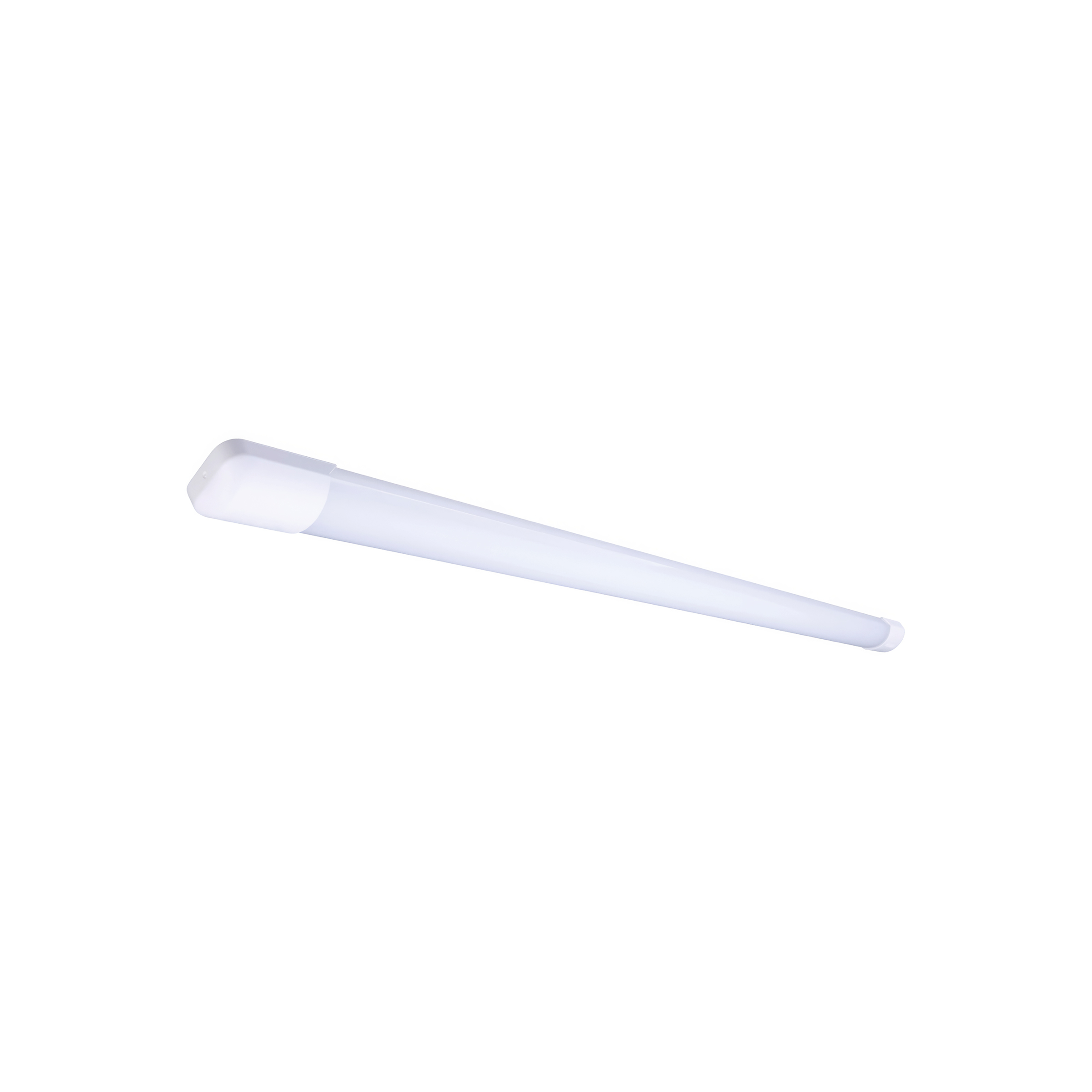

GreenUp Batten G2
The GreenUp batten is a simple LED solution which efficiently illuminates work areas, creating a brighter and better warehouse, retail or manufacture environment. With its elegant L&F design and energy efficiency, this easy-to-install and low-maintenance lighting solution is suitable for a variety of applications.
Features & Benefits
- System efficacy 120lm/W provides high energy savings up to 56% vs conventional
- Elegant L&F design with CRI80 fit for different applications with comfort lighting experience
- Safe and Reliable with long lifetime 50,000 hours
- Linear design with flexible installation
Applications
- Warehouse
- Distribution Center
- Factory
- Parking Lot
- Supermarket
- Retail Shop
- Office
Techical Info
| GENERAL INFORMATION | |
| Installation | Suspension, Ceiling Mounted |
| Connection | Standalone, Fly Wire, Side Entry |
| Driver | Fixed |
| IP Rating | IP20 |
| LIGHT TECHNICAL | |
| Optical Cover Type | PC Diffuser, Stainless Steel Back |
| Color Rendering Index (CRI) | 80 |
| SDCM | <5 |
| System Efficacy | 120lm/W |
| Color & CCT | 4000K, 6500K |
| Photometric | Sym Diffused |
| Lifetime | 50K Hours@L70 |
| Others | Visually Uniform, No Hotspot |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Power Factor | 0.9 / 0.5 |
| TEMPERATURE | |
| Operating Temperature Range | Ta 25 ̊C |
| APPROVAL AND APPLICATION | |
| Approbation | CE, CB, EMC, RoHS |
