General Details

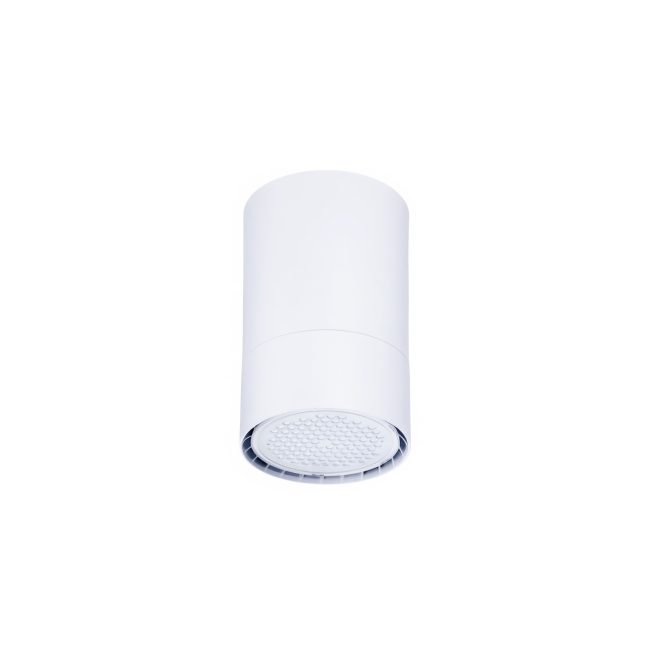

GreenSpace Surface High Lumen
Philips GreenSpace Surface-mounted High Lumen LED Downlight delivers a superior LED alternative that’s up to 66% more energy efficient than the conventional downlight retrofits. Blending seamlessly into its environment, GreenSpace Surface-mounted LED Downlight mimics the form of conventional recessed downlight minus the associated high energy and maintenance costs. Philips GreenSpace Surface-mounted High Lumen LED Downlight is also ideal for all commercial lighting applications as well as public indoor space where there is limited space in the ceiling.
Benefits
- Superior optics: Up to 120 lm/W, two beam options for design flexibility
- Solid look & feel with compactness: Slim form factor, diameter 220mm
- Excellent light quality with consistency: CRI >80, SDCM 3
- Reliable performance: Lifetime 50,000hours L70 Ta 35°C
- Easy installation: Surface mounted and suspended available
Features
- 12000lm with leading optical efficacy up to 120lm/W
- Outer diameter 220mm, overall height <250mm for PSU
- Lifetime of 50000 hours L70@Ta 35° C, IP65
- WB & MB, Surface mounted & Suspended
- DALI dimming available, 1-10V dimming via customization
Applications
- Airport
- Station Concourse
- Exhibition Center
- Semi-Outdoor Area
Techical Info
| GENERAL INFORMATION | |
| System Lumen Output | 12,000lm |
| Driver Included | Yes |
| Light Source Replaceable | No |
| Number of Gear Units | 1 Unit |
| Service Tag | Yes |
| IP Rating | IP65 |
| LIGHT TECHNICAL | |
| Optical Cover Type | Metal Housing, Plastic Lens |
| Color Rendering Index (CRI) | Ra ≥ 80; R9 ≥ 0 |
| UGR | <25 |
| Beam Angle | MB – 30~35; WB 50~55 °C |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Power Factor | 0.9 |
| THD | <15% |
| Driver | On/Off, DALI |
| TEMPERATURE | |
| Ambient Temperature Range | -20 to +40 °C |
| CONTROLS AND DIMMING | |
| Dimmable | Yes (DALI) |
| APPROVAL AND APPLICATION | |
| Approbation | CC, CB, EMC, CE, ASNZ |
